130 SERIES-130 TW0053

Code: TW0053

White polypropylene castors. Especially indicated to support high-loads up to 280 Kg.

It is used in: logistics transport tools, repair shops, tool trolleys, internal logistics,mobile platforms, transport tools, elevating platforms, food industry, transport carts, logistics for military missions material, ladders, packaging machines, conveyor belts, light machinery for the construction, elevating tables, boilers, cabinetmaker's, locksmith's, metalworks, agricultural farms, meat industry, textiles, sport centres, containers and transport cages.

Mainly used in the industrial sector, aeronautic sector, automobile factories, food industry, textile, agricultural, poultry farms, freezers, freezer cabinets and tubular carts.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 130: undeformable and resistant. Easy to start and move.

Components

Brackets

Pressed steel bracket. Finish: glossy zinc plating.Fitting: plate.Double ball bearing.Wheel Bearings: roller bearing.

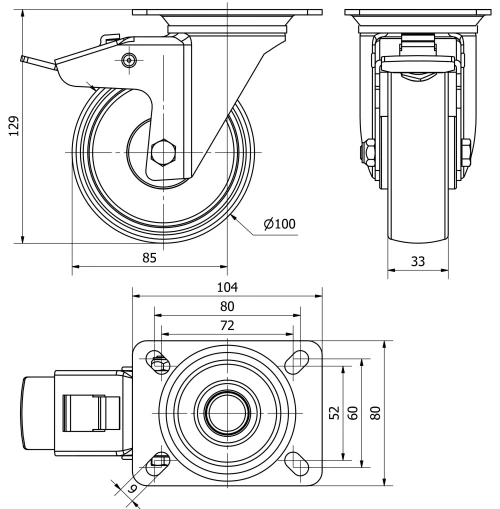

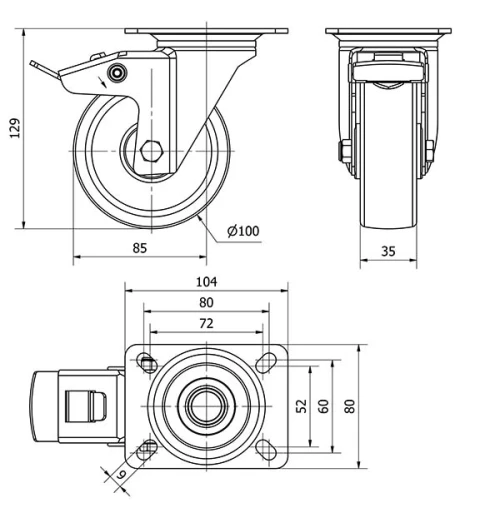

Technical Data TW0053

EAN:

8422202000534

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Polypropylene

Bearing:

Roller

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

102x80

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

128

Load:

150

Unit Weight of the wheel (kg):

0,855

Volume (cm³):

1393,6
