Which castors do you need?

SERIE 140-140

Categories

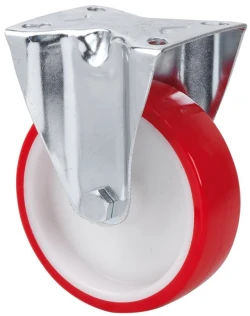

Castors with white polypropylene centre and red polyurethane tyre. Especially indicated to support high-loads up to 150 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, internal logistics, transport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers, sport centres and sound boxes.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 140: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

See comparative

140 SERIES-140

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0211 80 100 32 Bearing: Plain 100x84 80x60/72x52 8 105 74
TW0212 100 120 32 Bearing: Plain 100x84 80x60/72x52 8 128 83
TW0213 125 150 40 Bearing: Plain 100x84 80x60/72x52 8 155 93
TW0308 160 250 40 Bearing: Plain 135x114 108x85/102x75 10 197 124
TW0311 200 300 50 Bearing: Plain 135x114 108x85/102x75 10 238 142

140 SERIES-140

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0214 80 100 32 Bearing: Plain 100x84 80x60/72x52 8 105 --
TW0215 100 120 32 Bearing: Plain 100x84 80x60/72x52 8 128 --
TW0216 125 150 40 Bearing: Plain 100x84 80x60/72x52 8 155 --
TW0309 160 250 40 Bearing: Plain 135x114 108x85/102x75 10 197 --
TW0312 200 300 50 Bearing: Plain 135x114 108x85/102x75 10 238 --

140 SERIES-140

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0217 80 100 32 Bearing: Plain 102x84 80x60/72x52 8 105 74
TW0218 100 120 32 Bearing: Plain 102x84 80x60/72x52 8 128 83
TW0219 125 150 40 Bearing: Plain 102x80 80x60/72x52 8 155 93
TW0310 160 250 40 Bearing: Plain 135x114 108x85/102x75 10 197 124
TW0313 200 300 50 Bearing: Plain 135x114 108x85/102x75 10 238 142
