140 SERIES-140 TW0214

Code: TW0214

Castors with white polypropylene centre and red polyurethane tyre. Especially indicated to support high-loads up to 150 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, internal logistics, transport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers, sport centres and sound boxes.

Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.

Suitable for mechanical engineering projects by draftsmen and project executors.

TWIN-LEX 140: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

Components

Brackets

Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads

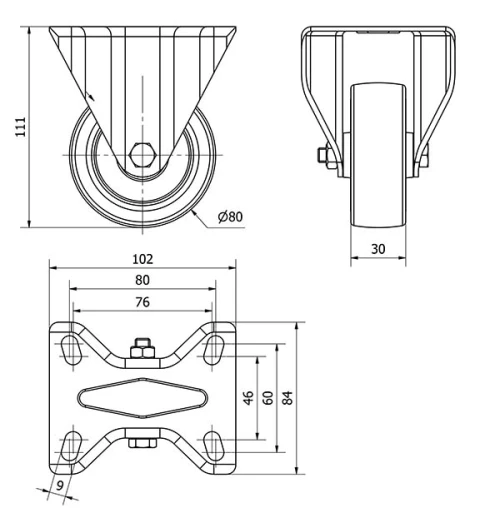

Technical Data TW0214

EAN:

8422202002149

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

100x84

Distance between holes (mm):

80x60/72x52

Plate hole diameter (mm):

Overall height (mm):

105

Load:

100

Unit Weight of the wheel (kg):

0,375

Volume (cm³):

907,2

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

TW0211

TW0217
