140 SERIES-140 TW0215
EAN 8422202002156

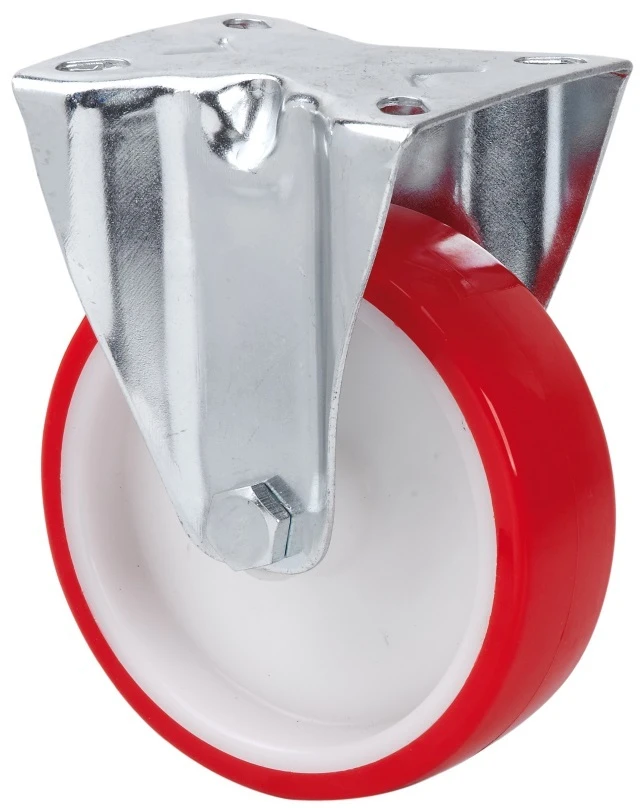

Castors with white polypropylene centre and red polyurethane tyre. Especially indicated to support high-loads up to 150 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, internal logistics, tool trolleys, tubular carts, pneumatic factories, internal logistics, transport tools, elevating platforms, transport carts, ladders, sweeping machines, polishing machines, packaging machines, conveyor belts, mobile cranes, elevating driven carts, boilers, cabinetmaker's, metalworks, agricultural farms, elevating tables, meat industry, containers, sport centres and sound boxes.
Mainly used in the aeronautic sector, railway, automobile factories, food industry, repair shops and industrial activities.
Suitable for mechanical engineering projects by draftsmen and project executors.
TWIN-LEX 140: long useful life. High resistance to oils and grease. Noiseless, clean and undeformable.

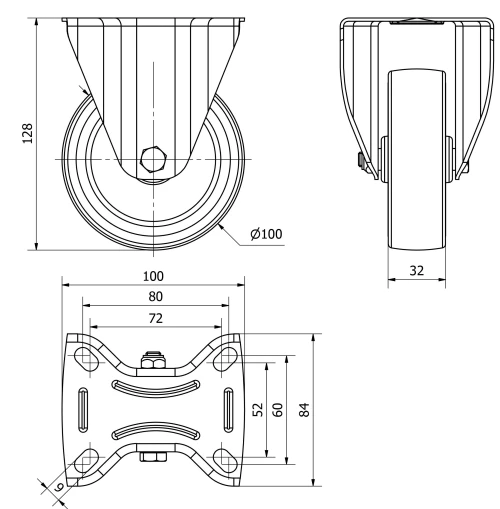

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 100x84 |
Distance between holes (mm) | 80x60/72x52 |
Plate hole diameter (mm) | 8 |
Overall height (mm) | 128 |
Load | 120 |
Unit Weight of the wheel (kg) | 0.45 |
Volume (cm3) | 1092 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with steel plate up to 4mmGlossy zinc platingDouble ball bearingUniversal model for medium duty loads
