301 SERIES-301 TW0252

Code: TW0252

Grey injected rubber castors. Especially indicated to support high-loads up to 130 Kg.

It is used in: food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, supermarkets, housekeeping carts and beds.

TWIN-LEX 301: does not leave marks on floor. Easy to move with load.

Components

Brackets

Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Plain bearing.

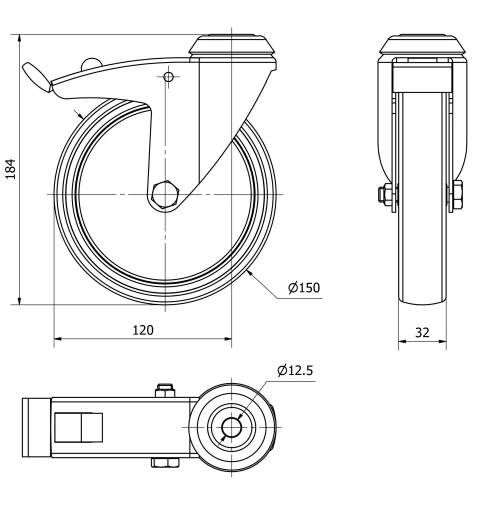

Technical Data TW0252

EAN:

8422202002521

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

150

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

120

Overall height (mm):

184

Load:

130

Unit Weight of the wheel (kg):

0,93

Volume (cm³):

1656
