Which castors do you need?

SERIE 400-400

Categories

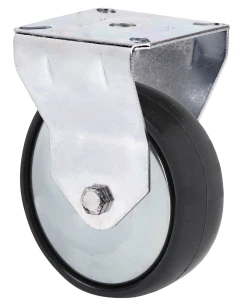

Black polypropylene castors. Especially indicated to support high-loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.

TWIN-LEX 400: floor protection. Easy to move.



See comparative

400 SERIES-400

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0136 50 50 20 Bearing: Plain 60x60 46x46 6 72 51
TW0137 60 60 22 Bearing: Plain 60x60 46x46 6 82 52
TW0138 80 65 24 Bearing: Plain 60x60 46x46 6 104 68
TW0139 100 70 24 Bearing: Plain 60x60 46x46 6 121 80
Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0316 50 50 20 Bearing: Plain 60x60 46x46 6 72 --
TW0317 60 60 22 Bearing: Plain 60x60 46x46 6 82 --
TW0318 80 65 24 Bearing: Plain 60x60 46x46 6 104 --
TW0319 100 70 24 Bearing: Plain 60x60 46x46 6 121 --

400 SERIES-400

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0140 50 50 20 Bearing: Plain 60x60 46x46 6 72 51
TW0141 60 60 22 Bearing: Plain 60x60 46x46 6 82 52
TW0142 80 65 24 Bearing: Plain 60x60 46x46 6 104 68
TW0143 100 70 24 Bearing: Plain 60x60 46x46 6 121 80

400 SERIES-400

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0097 50 50 20 Bearing: Plain -- -- 10 72 51
TW0098 60 60 22 Bearing: Plain -- -- 10 82 52
TW0099 80 65 24 Bearing: Plain -- -- 10 104 68
TW0100 100 70 24 Bearing: Plain -- -- 10 121 80

400 SERIES-400

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0144 50 50 20 Bearing: Plain -- -- 10 72 51
TW0145 60 60 24 Bearing: Plain -- -- 10 82 52
TW0146 80 65 24 Bearing: Plain -- -- 10 104 68
TW0147 100 70 24 Bearing: Plain -- -- 10 121 80
