400 SERIES-400 TW0136

Code: TW0136

Black polypropylene castors. Especially indicated to support high-loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.

TWIN-LEX 400: floor protection. Easy to move.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate and bolt hole.Double ball bearing.Wheel Bearings: Plain bearing.Avalaible with threadguards.

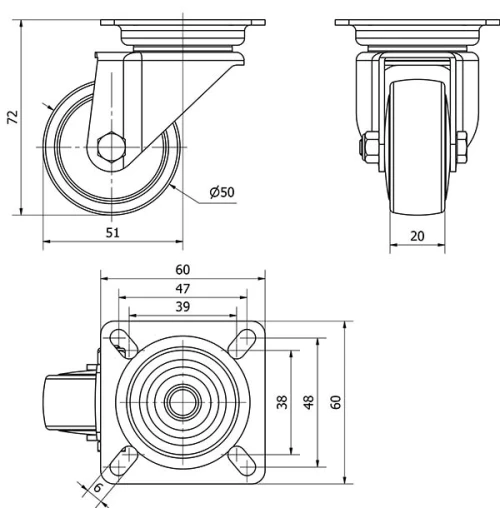

Technical Data TW0136

EAN:

8422202001364

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Nylon(Polyamide 6)

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate dimensions (mm):

60x60

Distance between holes (mm):

46x46

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,21

Volume (cm³):

349,92
