Which castors do you need?
400 SERIES-400 TW0142
EAN 8422202001425
Black polypropylene castors. Especially indicated to support high-loads up to 70 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.
TWIN-LEX 400: floor protection. Easy to move.

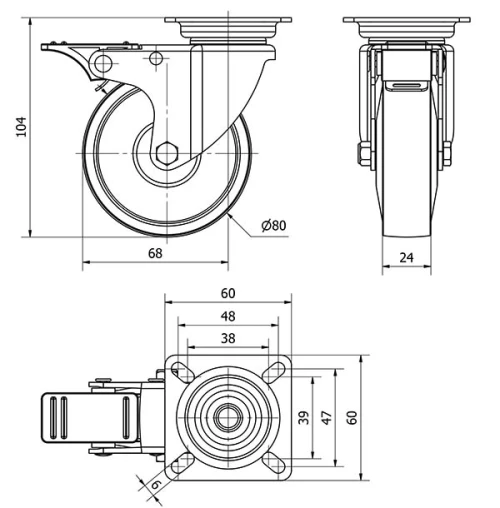

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Nylon(Polyamide 6) |
Bearing | Plain |
Diameter (mm) | 80 |
Width of tyre (mm) | 24 |
Plate dimensions (mm) | 60x60 |
Distance between holes (mm) | 46x46 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 68 |
Overall height (mm) | 104 |
Load | 65 |
Unit Weight of the wheel (kg) | 0.37 |
Volume (cm3) | 611.52 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate and bolt hole.Double ball bearing.Wheel Bearings: Plain bearing.Avalaible with threadguards.
