Which castors do you need?

SERIE 401-401

Categories

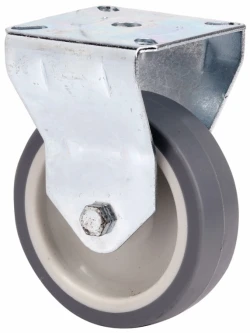

Grey rubber castors. Especially indicated to support high-loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.

TWIN-LEX 401: does not scratch floor. Easy to move. Noiseless.

See comparative

401 SERIES-401

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0229 50 40 20 Bearing: Plain 60x60 46x46 6 72 51
TW0230 60 50 24 Bearing: Plain 60x60 46x46 6 82 52
TW0231 80 60 24 Bearing: Plain 60x60 46x46 6 104 68
TW0232 100 70 24 Bearing: Plain 60x60 46x46 6 121 80

401 SERIES-401

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0233 50 40 20 Bearing: Plain 60x60 46x46 6 72 --
TW0234 60 50 24 Bearing: Plain 60x67 46x46 6 82 --
TW0235 80 60 24 Bearing: Plain 60x67 46x46 6 104 --
TW0236 100 70 24 Bearing: Plain 60x67 46x46 6 121 --

401 SERIES-401

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0237 50 40 20 Bearing: Plain 60x60 46x46 6 72 51
TW0238 60 50 24 Bearing: Plain 60x60 46x46 6 82 52
TW0239 80 60 24 Bearing: Plain 60x60 46x46 6 104 68
TW0240 100 70 24 Bearing: Plain 60x60 46x46 6 121 80

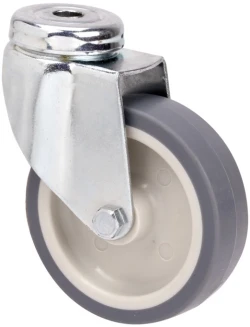

401 SERIES-401

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0241 50 40 20 Bearing: Plain -- -- 10 72 51
TW0242 60 50 24 Bearing: Plain -- -- 10 82 52
TW0243 80 60 24 Bearing: Plain -- -- 10 104 68
TW0244 100 70 24 Bearing: Plain -- -- 10 121 80

401 SERIES-401

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0245 50 40 20 Bearing: Plain -- -- 10 72 51
TW0246 60 50 24 Bearing: Plain -- -- 10 82 52
TW0247 80 60 24 Bearing: Plain -- -- 10 104 68
TW0248 100 70 24 Bearing: Plain -- -- 10 121 80
