401 SERIES-401 TW0231
EAN 8422202002316

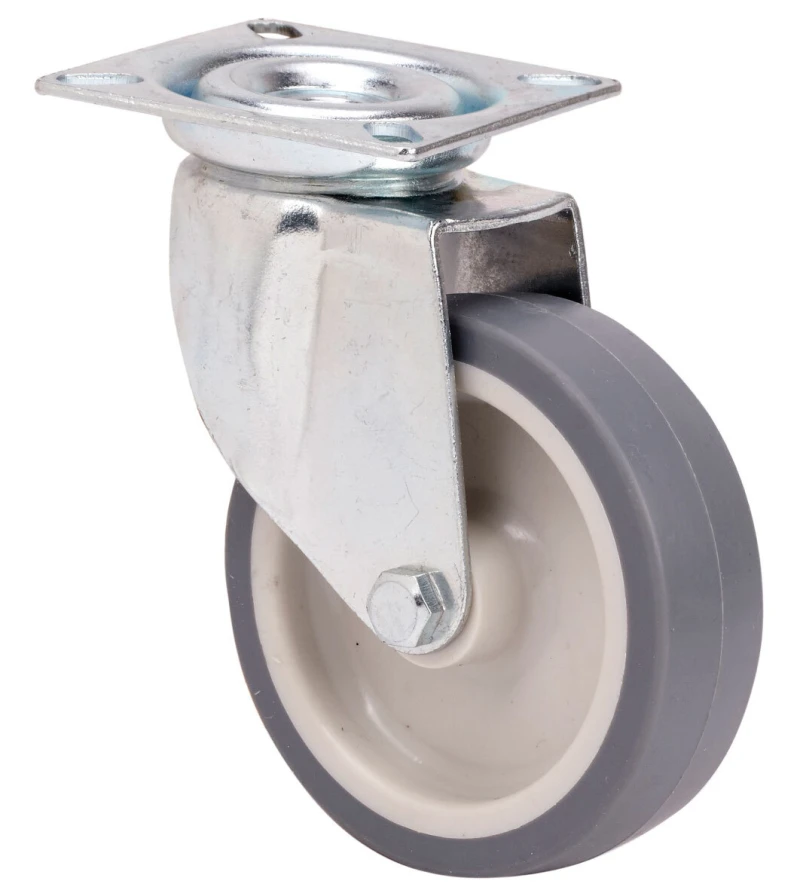

Grey rubber castors. Especially indicated to support high-loads up to 70 Kg.
It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.
TWIN-LEX 401: does not scratch floor. Easy to move. Noiseless.

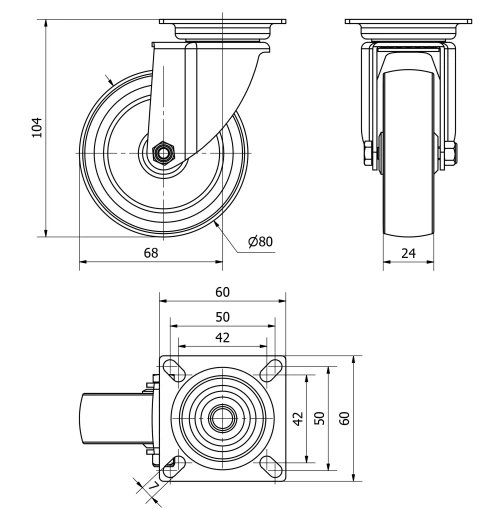

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 80 |
Width of tyre (mm) | 24 |
Plate dimensions (mm) | 60x60 |
Distance between holes (mm) | 46x46 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 68 |
Overall height (mm) | 104 |
Load | 60 |
Unit Weight of the wheel (kg) | 0.29 |
Volume (cm3) | 611.52 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Manufactured with pressed steel. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Plain bearing. Avalaible with threadguards.
