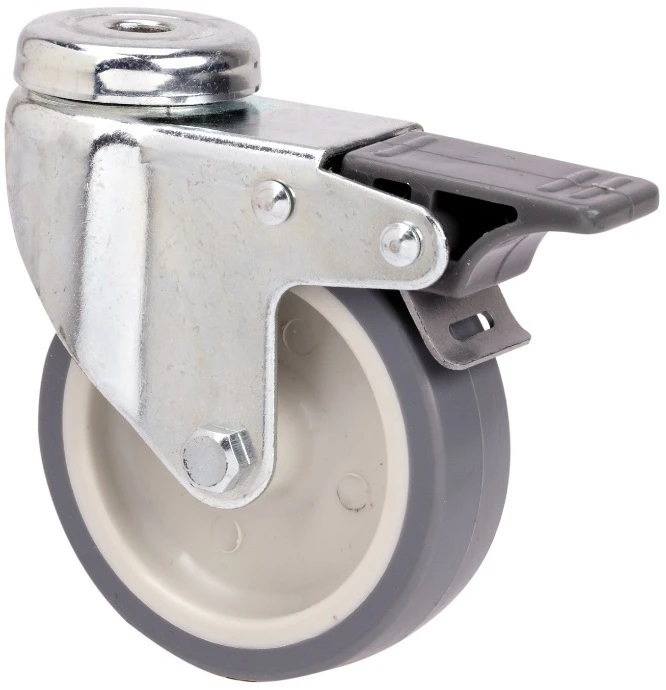

401 SERIES-401 TW0245

Code: TW0245

Grey rubber castors. Especially indicated to support high-loads up to 70 Kg.

It is used in: supermarkets, display stands, furniture, stackable boxes, stools, display cabinets, clothes racks, catering carts, hospital equipment, sanitary furniture and drips.

TWIN-LEX 401: does not scratch floor. Easy to move. Noiseless.

Components

Brackets

Manufactured with pressed steel. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Plain bearing. Avalaible with threadguards.

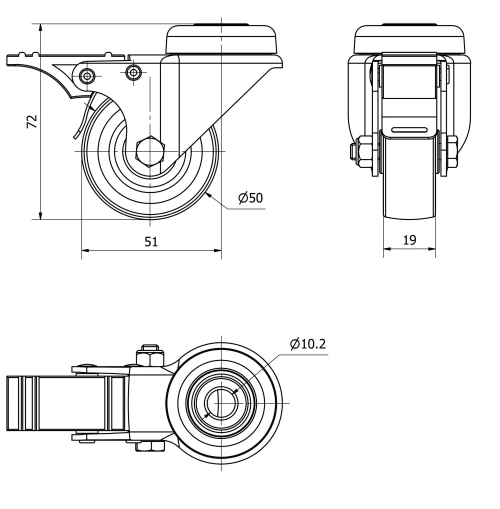

Technical Data TW0245

EAN:

8422202002453

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,205

Volume (cm³):

238,14

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products
