410 SERIES-410 TW0103

Code: TW0103

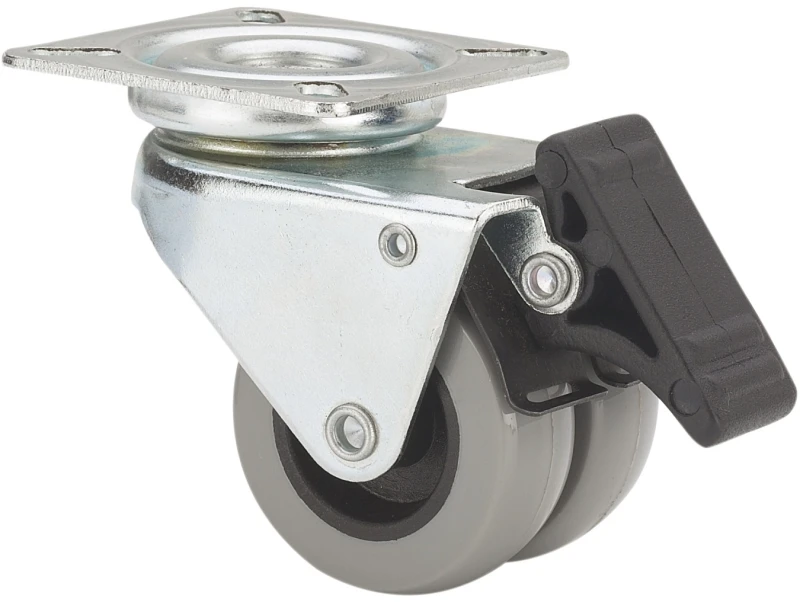

Grey rubber double castors. Especially indicated to support high-loads up to 80 Kg.

It is used in: cold stores, sales counters, book shops, offices, fashion shops, do-it-yourself shops, freezer cabinets, laundries, file cabinets, containers for document destruction and shop interiors.

TWIN-LEX 410: robust, noiseless, does not scratch or leave marks on floor.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate and bolt hole.Double ball bearing.Wheel Bearings: Plain bearing.

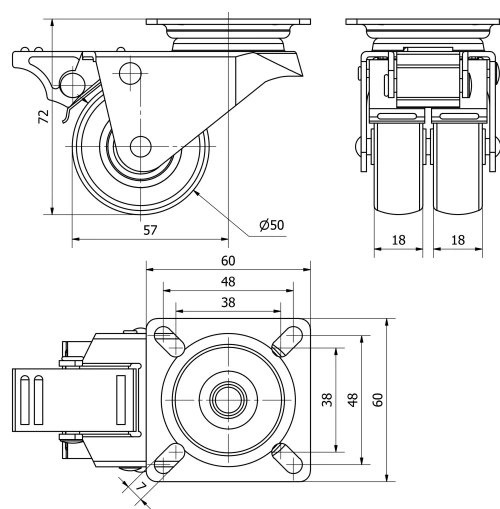

Technical Data TW0103

EAN:

8422202001036

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

20x2

Plate dimensions (mm):

60x60

Distance between holes (mm):

47x47/40x40

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,29

Volume (cm³):

367,2
