411 SERIES-411 TW0104
EAN 8422202001043

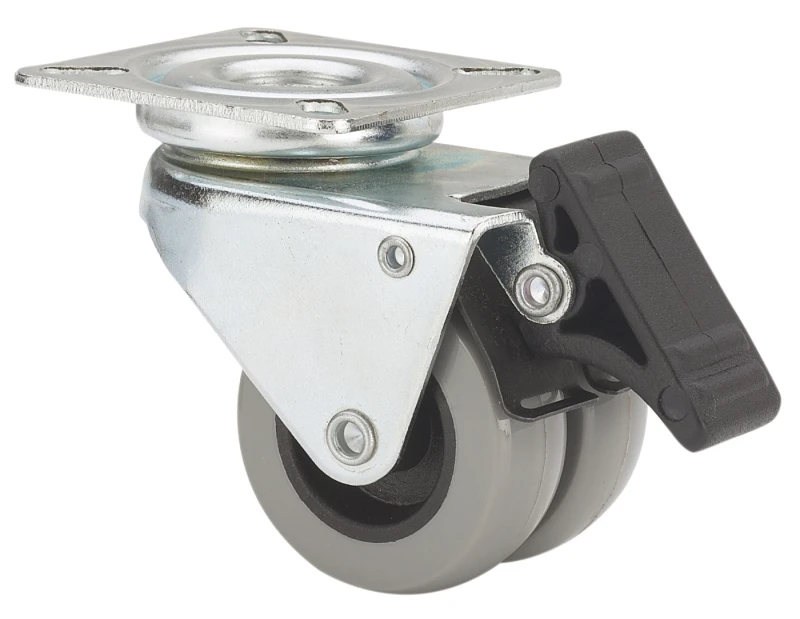

Grey polypropylene double castors. Especially indicated to support high-loads up to 80 Kg.
It is used in: cold stores, sales counters, chicken broiler machines, book shops, offices, fashion shops, do-it-yourself shops, freezer cabinets, laundries, file cabinets, containers for document destruction and shop interiors.
TWIN-LEX 411: robust, noiseless, does not scratch or leave marks on floor.

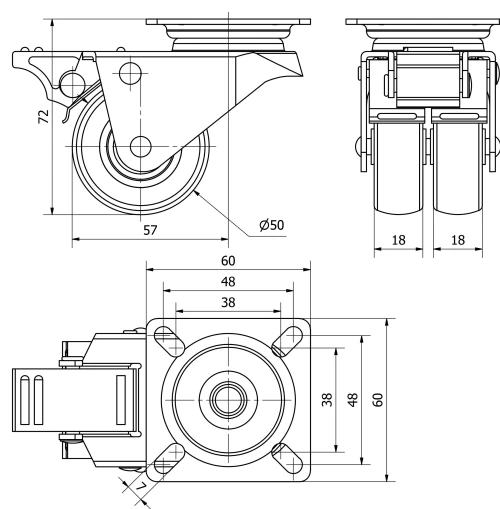

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Nylon(Polyamide 6) |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 20x2 |
Plate dimensions (mm) | 60x60 |
Distance between holes (mm) | 47x47/40x40 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 55 |
Overall height (mm) | 72 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.3 |
Volume (cm3) | 367.2 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate and bolt hole.Double ball bearing.Wheel Bearings: Plain bearing.
