Code: TW0133

Polypropylene castors especially indicated to support high-loads up to 30 Kg.

It is used in: display stands, furniture, clothes racks, display cabinets and displays.

TWIN-LEX 415: undeformable. Easy to move.

Components

Brackets

Pressed steel bracket.Finish: glossy zinc plating.Fitting: plate.Wheel Bearings: Plain bearing.A single row of balls.

Technical Data TW0133

EAN:
8422202001333
Housing Type:
Fixed
Fitting Type:
Plate
Braking System:
Without Brake
Material:
Plastic Polypropylene
Bearing:
Plain
Diameter (mm):
30
Width of tyre (mm):
14
Plate dimensions (mm):
38x19
Distance between holes (mm):
30
Plate hole diameter (mm):
4
Overall height (mm):
40
Load:
18
Unit Weight of the wheel (kg):
0,023
Volume (cm3):
28,88

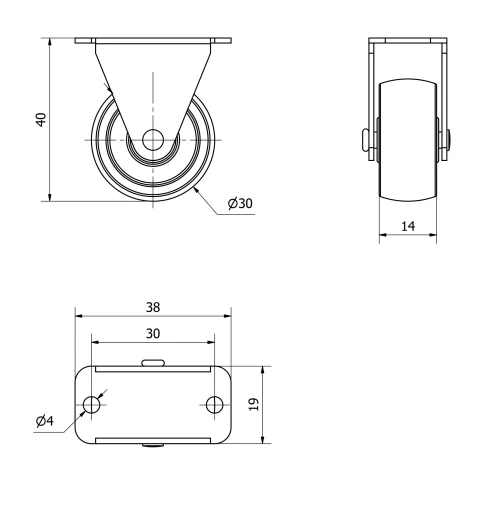

Technical Data TW0133
