420 SERIES-420 TW0113

Code: TW0113

Black polypropylene castors especially indicated to support high-loads up to 50 Kg.

It is used in: display stands, furniture, beauty and hairdresser's equipment, office chairs, stools, clothes racks, photocopiers, cabinetmaker's, hospital equipment, sanitary furniture, drip holders, drips, storage beds and waste bins.

TWIN-LEX 420: light and resistant. Ideal load capacity.

Components

Brackets

Fittings: Swivel Plate, threaded stem, stem with circlip, stem without circlip.Swivel plate with brake, threaded stem with brake.Black polypropylene wheel.

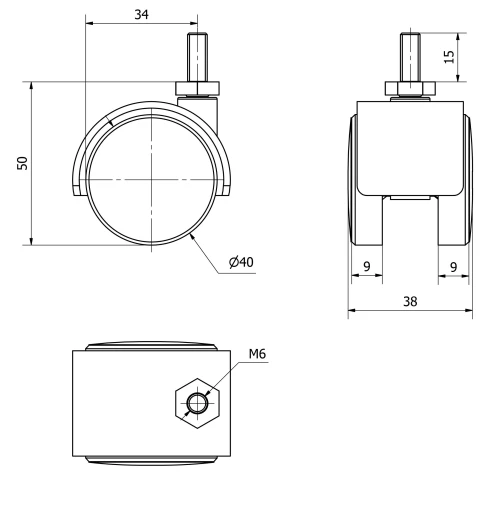

Technical Data TW0113

EAN:

8422202001135

Housing Type:

Swivel

Fitting Type:

Threaded Stem

Braking System:

Without Brake

Material:

Plastic Polypropylene

Bearing:

Plain

Diameter (mm):

Width x height of stem:

6x15

Plate hole diameter (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,046

Volume (cm³):

98,8
