Which castors do you need?
420 SERIES-420 TW0118
EAN 8422202001180
Black polypropylene castors especially indicated to support high-loads up to 50 Kg.
It is used in: display stands, furniture, beauty and hairdresser's equipment, office chairs, stools, clothes racks, photocopiers, cabinetmaker's, hospital equipment, sanitary furniture, drip holders, drips, storage beds and waste bins.
TWIN-LEX 420: light and resistant. Ideal load capacity.

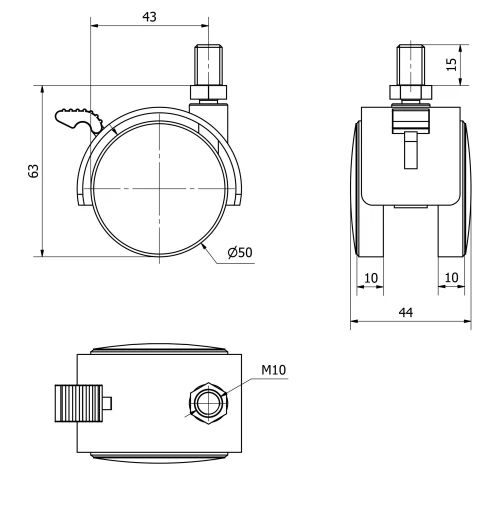

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Threaded Stem |
Braking System | Wheel Brake |
Material | Plastic Polypropylene |
Bearing | Plain |
Diameter (mm) | 50 |
Width x height of stem | 10x15 |
Plate hole diameter (mm) | 5 |
Overall height (mm) | 63 |
Load | 50 |
Unit Weight of the wheel (kg) | 0.08 |
Volume (cm3) | 169.4 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Fittings: Swivel Plate, threaded stem, stem with circlip, stem without circlip.Swivel plate with brake, threaded stem with brake.Black polypropylene wheel.
