Which castors do you need?

SERIE 601-601

Categories

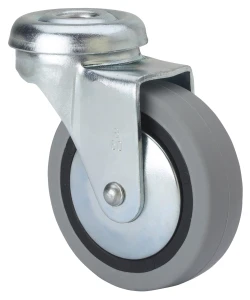

Grey injected rubber castors especially indicated to support high-loads up to 25 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture, and bedside tables.

TWIN-LEX 601: does not scratch or leave marks on floor. Noiseless.

See comparative

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0150 30 15 16 Bearing: Plain 46x36 34x24 5 51 32
TW0151 40 17 16 Bearing: Plain 46x36 34x24 5 58 45
TW0152 50 22 18 Bearing: Plain 70x55 54x38 6 72 46
TW0153 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0158 40 17 16 Bearing: Plain 46x36 34x24 5 58 45
TW0159 50 22 18 Bearing: Plain 70x55 54x38 6 72 46
TW0160 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
TW0192 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0154 30 15 16 Bearing: Plain -- -- 8 48 32
TW0155 40 17 16 Bearing: Plain -- -- 8 57 45
TW0156 50 22 18 Bearing: Plain -- -- 10 67 46
TW0157 60 25 18 Bearing: Plain -- -- 10 78 53

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0161 40 17 16 Bearing: Plain -- -- 8 57 45
TW0162 50 22 18 Bearing: Plain -- -- 10 67 46
TW0163 60 25 18 Bearing: Plain -- -- 10 78 53

601 SERIES-601

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
TW0193 60 25 18 Bearing: Plain -- -- 10 78 53
