Which castors do you need?
601 SERIES-601 TW0154
EAN 8422202001548
Grey injected rubber castors especially indicated to support high-loads up to 25 Kg.
It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture, and bedside tables.
TWIN-LEX 601: does not scratch or leave marks on floor. Noiseless.

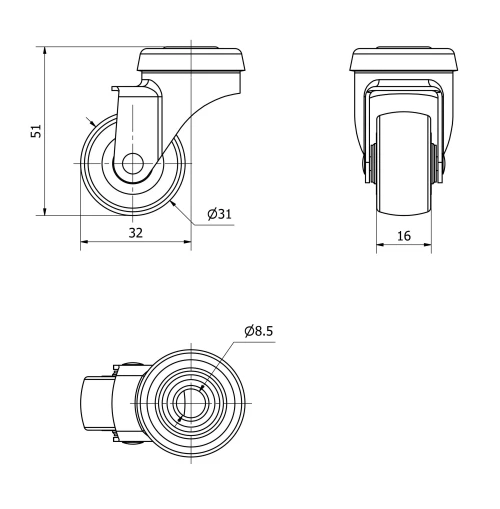

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 30 |
Width of tyre (mm) | 16 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 32 |
Overall height (mm) | 48 |
Load | 15 |
Unit Weight of the wheel (kg) | 0.055 |
Volume (cm3) | 73.73 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Glossy zinc-plating. One single ball bearing swivel head. Rubber wheels Ø 50 and 60 mm with threadguards. Manufactured to European standards EN 12528.
