Which castors do you need?
300 SERIES-300 TW0062
EAN 8422202000626

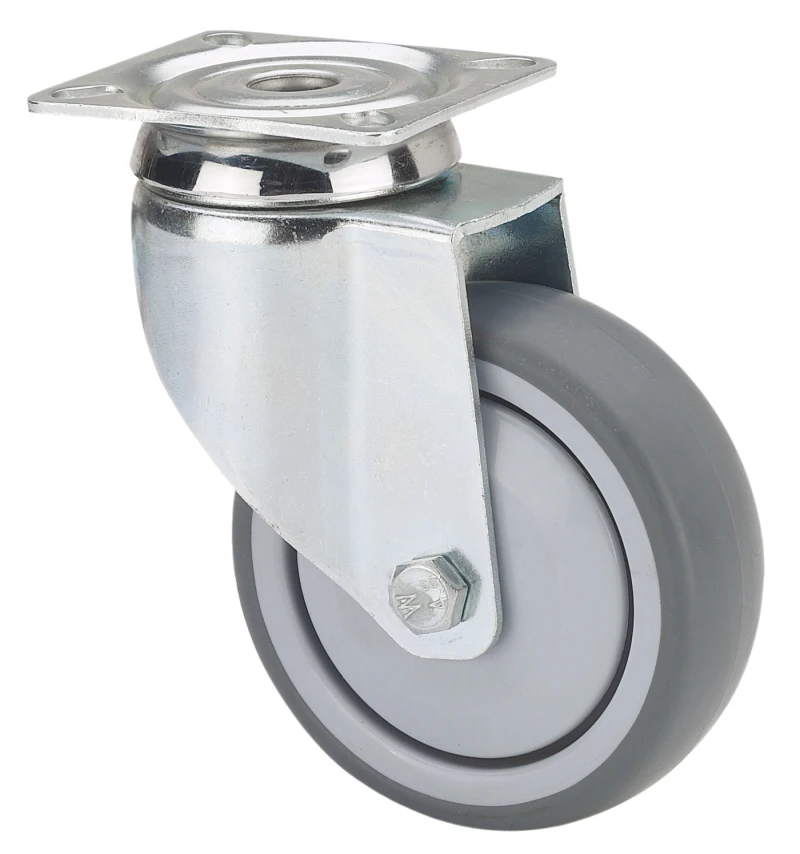

Castors with polypropylene centre and grey rubber tyre. Especially indicated to support high-loads up to 130 Kg.
It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.
TWIN-LEX 300: does not leave marks on floor. Smooth and noiseless castor.

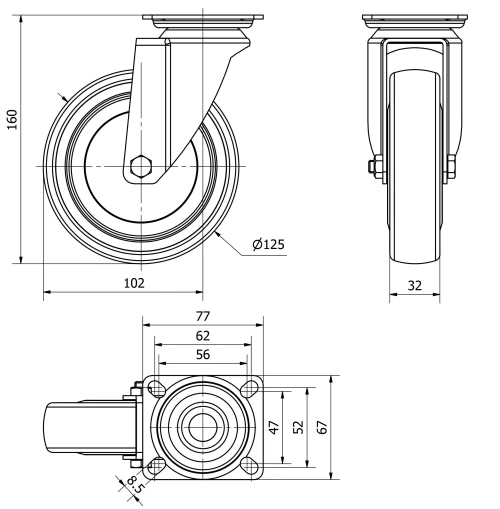

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 77x67 |
Distance between holes (mm) | 62x51/56x47 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 102 |
Overall height (mm) | 160 |
Load | 100 |
Unit Weight of the wheel (kg) | 0.8 |
Volume (cm3) | 1506.16 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Ball bearing.
