300 SERIES-300 TW0250

Code: TW0250

Castors with polypropylene centre and grey rubber tyre. Especially indicated to support high-loads up to 130 Kg.

It is used in: canteens, dining rooms, restaurants, supermarkets, food trolleys and beds.

TWIN-LEX 300: does not leave marks on floor. Smooth and noiseless castor.

Components

Brackets

Pressed steel bracket. Finish: glossy zinc plating. Fitting: plate and bolt hole. Double ball bearing. Wheel Bearings: Ball bearing.

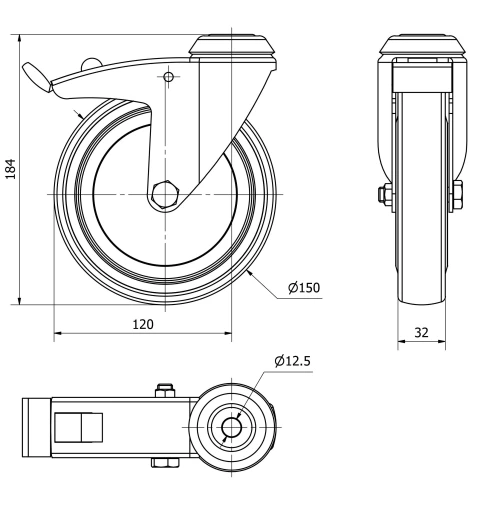

Technical Data TW0250

EAN:

8422202002507

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

120

Overall height (mm):

184

Load:

130

Unit Weight of the wheel (kg):

1,166

Volume (cm³):

1656

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

TW0249
