123.2 SERIES-123.2 TW0315

See comparative

Code: TW0315

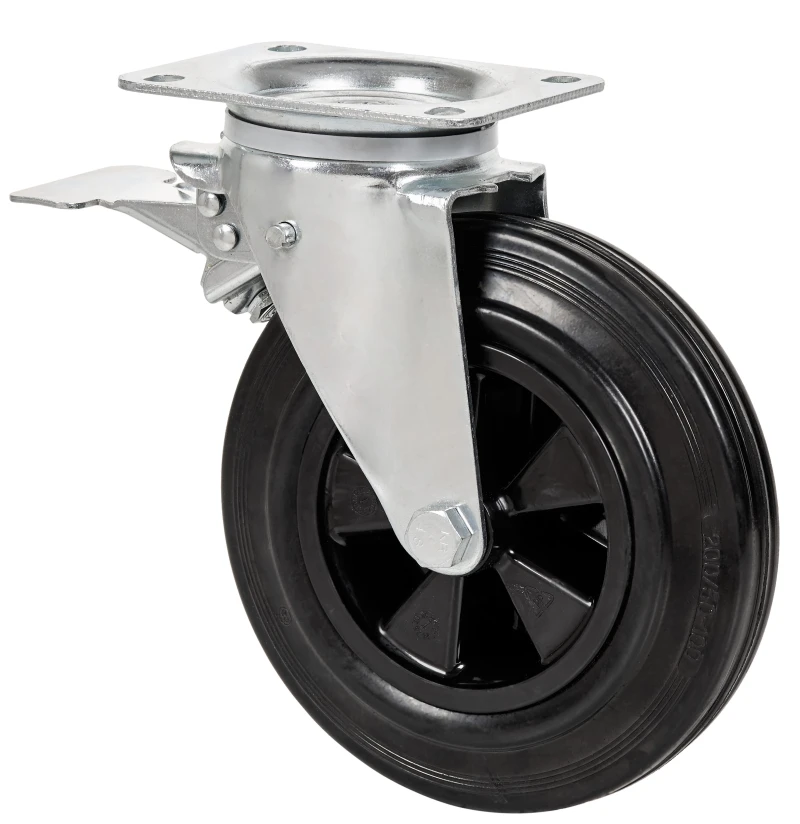

Black rubber castors. Especially indicated to support high-loads up to 200 Kg.

It is used in: tool trolleys, tubular carts, internal logistics, mobile platforms, transport tools, elevating platforms, repair shops, food trolleys, kitchens, canteens, dining rooms, restaurants, food industry, logistics for military missions material, compressors, ladders, sweeping machines, polishing machines, welding, cement mixers, cranes, packaging machines, conveyor belts, mobile cranes, trailers, light machinery, cabinetmaker's, locksmith's, metalworks, agricultural farms, waste containers, containers, roll containers and transport cages.

TWIN-LEX 123.2: smooth and noiseless castor. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Manufactured with steel plate up to 4mm Glossy zinc plating Double ball bearing Universal model for medium duty loads

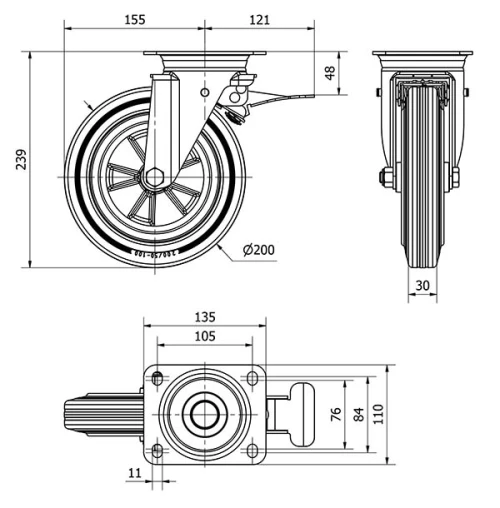

Technical Data TW0315

EAN:

8422202003153

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake And Fork

Bearing:

Plain

Color:

Black

Diameter (mm):

200

Width of tyre (mm):

Plate dimensions (mm):

140x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

142

Overall height (mm):

238

Load:

200

Diameter Attribute:

ESPECIAL CONTENEDORES
