201 SERIES-201 TW0059

See comparative

Code: TW0059

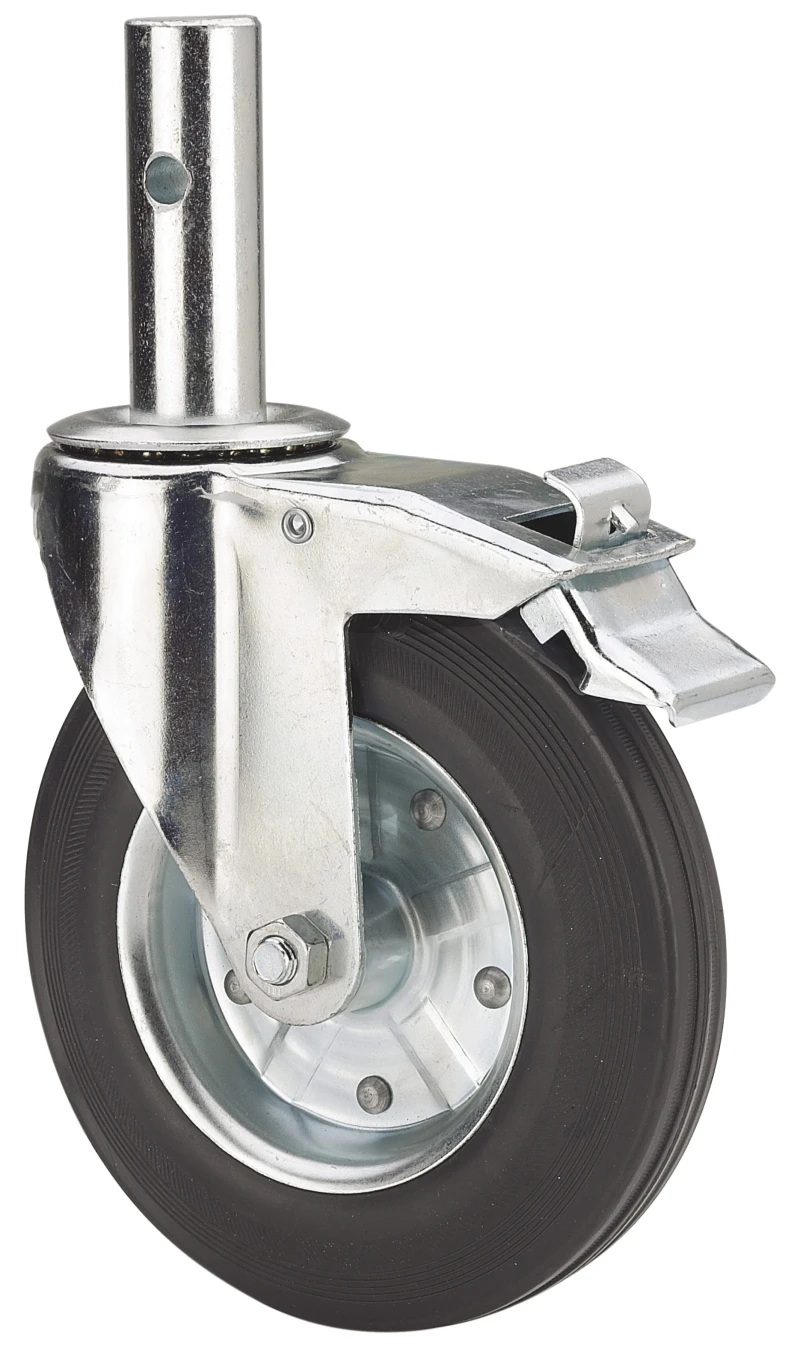

Castors with metal centre and black rubber tyre. Especially indicated to support high-loads up to 200 Kg.

Have been designed to be used in scaffolding.

Twin-lex 201: smooth and noiseless castors. High floor protection. Absorption to impacts and vibrations.

Components

Brackets

Pressed steel bracket. Finish: glossy zinc plating.Plug-in pin and solid stem fitting for scaffolding.Standard system.Double ball bearing.Wheel Bearings: roller bearing.

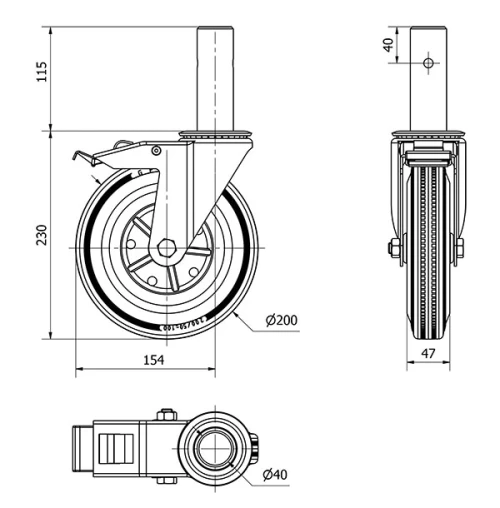

Technical Data TW0059

EAN:

8422202000596

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Wheel Brake And Fork

Material:

Rubber

Bearing:

Roller

Diameter (mm):

200

Width of tyre (mm):

Width x height of stem:

40x115

Load:

200

Unit Weight of the wheel (kg):

3,24
