SERIE SL-HG

Categories

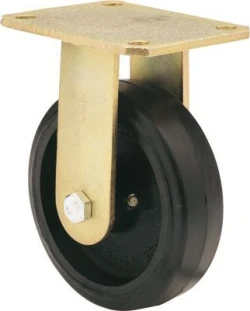

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, carbody factories, mobile platforms, internal logistics, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and boilers.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. High floor protection.

See comparative

SL SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0784 100 200 38 Bearing: Ball 135x110 105x80 10 140 83
4-0791 125 250 38 Bearing: Ball 135x110 105x80 10 165 102
2-1982 150 400 50 Bearing: Ball 135x110 105x80 10 190 120
2-1983 200 600 50 Bearing: Ball 135x110 105x80 10 241 154

SL SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0862 100 200 38 Bearing: Ball 135x110 105x80 10 140 --
4-0795 125 250 38 Bearing: Ball 135x110 105x80 10 165 --
2-1986 150 400 50 Bearing: Ball 135x110 105x80 10 190 --
2-1987 200 600 50 Bearing: Ball 135x110 105x80 10 241 --

SL SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-1193 100 200 38 Bearing: Ball 135x110 105x80 10 140 83
4-1194 125 250 38 Bearing: Ball 135x110 105x80 10 165 102
4-1615 150 400 50 Bearing: Ball 135x110 105x80 10 190 120
4-1616 200 600 50 Bearing: Ball 135x110 105x80 10 241 154
