SL SERIES-HG 4-1193

Code: 4-1193

Castors with steel centre and black rubber tyre, especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, carbody factories, mobile platforms, internal logistics, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and boilers.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

Suitable for mechanical engineering projects by draftsmen and project executors.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. High floor protection.

Components

Brackets

Made of welded steel up to 6 mm.Finish: Passivated zinc.Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor.Manufactured to European standard EN 12532.

Wheel

Rubber tyre on cast iron centre with grease nipple

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

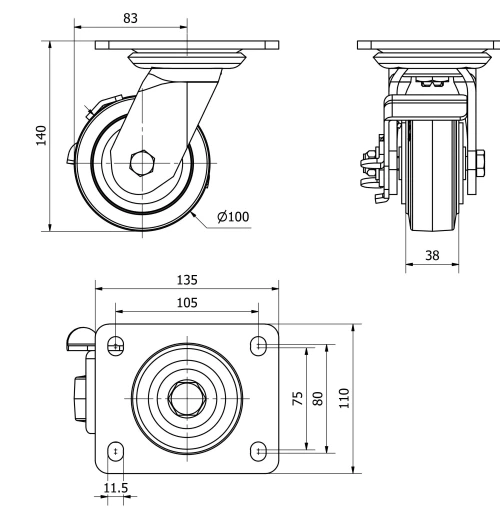

Technical Data 4-1193

EAN:

8422202411934

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Wheel Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

140

Load:

200

Unit Weight of the wheel (kg):

2,732

Volume (cm³):

2318
