SERIE SL-HU

Categories

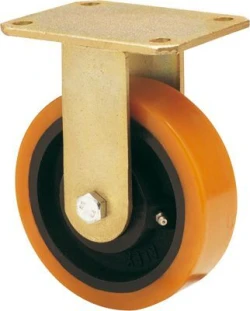

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, carbody factories, internal logistics, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, carts, equipments and industrial areas.

Suitable for mechanical engineering projects by draftsmen and project executors.

HU: rough flooring surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

See comparative

SL SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0785 100 350 40 Bearing: Ball 135x110 105x80 10 140 83
4-0792 125 400 40 Bearing: Ball 135x110 105x80 10 165 102
4-0863 150 600 50 Bearing: Ball 135x110 105x80 10 190 120
4-0807 200 600 50 Bearing: Ball 135x110 105x80 10 241 154

SL SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-0788 100 350 40 Bearing: Ball 135x110 105x80 10 140 --
4-0796 125 400 40 Bearing: Ball 135x110 105x80 10 165 --
4-0803 150 600 50 Bearing: Ball 135x110 105x80 10 190 --
4-0811 200 600 50 Bearing: Ball 135x110 105x80 10 241 --

SL SERIES-HU

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
4-1216 100 350 40 Bearing: Ball 135x110 105x80 10 140 83
4-1217 125 400 40 Bearing: Ball 135x110 105x80 10 165 102
4-1617 150 600 50 Bearing: Ball 135x110 105x80 10 190 120
4-1618 200 600 50 Bearing: Ball 135x110 105x80 10 241 154

Other castors SERIE SL

SERIE SL-HG
SERIE SL-HG
Diametro 100-200 mm
Carga 200-600 kg
SERIE SL-PO
SERIE SL-PO
Diametro 125-200 mm
Carga 300-600 kg
SERIE SL-FT
SERIE SL-FT
Diametro 100-200 mm
Carga 400-600 kg
SERIE SL-TA
SERIE SL-TA
Diametro 100-200 mm
Carga 450-600 kg
