SL SERIES-HU 4-0863

Code: 4-0863

Castors with steel centre and cast polyurethane tyre with a hardness of 95º Shore A, especially indicated to support high-loads up to 600 Kg.

It is used in: logistics transport tools, outdoor areas, carbody factories, internal logistics, mobile platforms, elevating platforms, logistics for military missions material, heavy machinery, mobile cranes, elevating tables, carts, equipments and industrial areas.

Suitable for mechanical engineering projects by draftsmen and project executors.

HU: rough flooring surfaces, broken, with metallic shavings, oil stains, broken glass, grease and gravel.

Components

Brackets

Made of welded steel up to 6 mm. Finish: Passivated zinc. Swivel head with a hardened double ball raceways to ensure durability and longevity of the castor. Manufactured to European standard EN 12532.

Wheel

Rolling Resistence Very Good

Noise during the march Good

Floor Protection Very Good

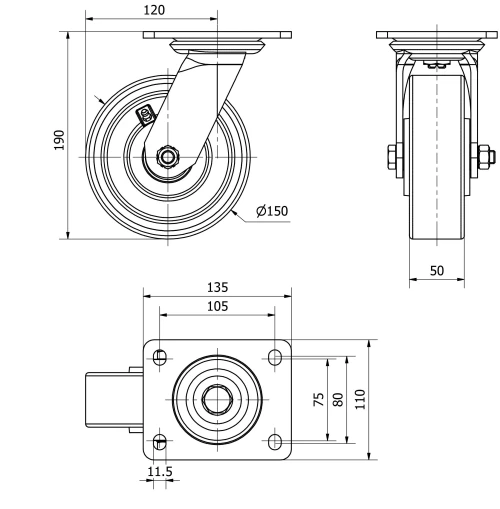

Technical Data 4-0863

EAN:

8422202408637

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polyurethane

Hardness of tread:

95º SHORE A

Bearing:

Ball

Diameter (mm):

150

Width of tyre (mm):

Plate dimensions (mm):

135x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Offset (mm):

120

Overall height (mm):

190

Load:

600

Unit Weight of the wheel (kg):

4,68

Volume (cm³):

3919
