Ruedas Alex

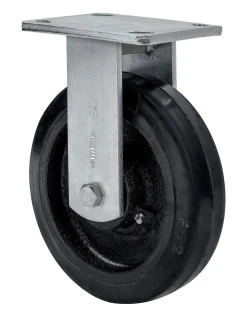

Castors with steel centre and black rubber tyre, especially indicated to support high-loads uo to 600 Kg.

It is used in: logistics transport tools, repair shops, outdoor areas, carbody factories, mobile platfors, internal logistics, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and boilers.

Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.

Applied in mechanical engineering projects by draughtsmen and designers. Suitable for mechanical engineering projects by draftsmen and project executors.

HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. High floor. protection.

SLR SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3641 150 400 50 Bearing: Ball 150x110 125x70/105x80 10 200 124
2-3642 200 600 50 Bearing: Ball 150x110 125x70/105x80 10 245 158

SLR SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3643 150 400 50 Bearing: Ball 150x110 125x70/105x80 10 200 --
2-3644 200 600 50 Bearing: Ball 150x110 125x70/105x80 10 245 --

SLR SERIES-HG

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-3645 150 400 50 Bearing: Ball 150x110 125x70/105x80 10 200 124
2-3646 200 600 50 Bearing: Ball 150x110 125x70/105x80 10 245 158

Other castors SERIE SLR

SERIE SLR-HU
Diametro 150-200 mm
Carga 800-1.000 kg
SERIE SLR-AUSB
Diametro 160-200 mm
Carga 600-750 kg
SERIE SLR-PO
Diametro 150-200 mm
Carga 450-600 kg
SERIE SLR-FT
Diametro 150-200 mm
Carga 900-1.000 kg
SERIE SLR-TA
Diametro 150-200 mm
Carga 1.000-1.000 kg
SERIE SLR-HUAB
Diametro 150-200 mm
Carga 600-800 kg
SERIE SLR-VN
Diametro 85-85 mm
Carga 600-600 kg
SERIE SLR-KI
Diametro 82-82 mm
Carga 450-450 kg
SERIE SLR-KN
Diametro 82-82 mm
Carga 650-650 kg
