SLR SERIES-HG 2-3644
EAN 8422202236445

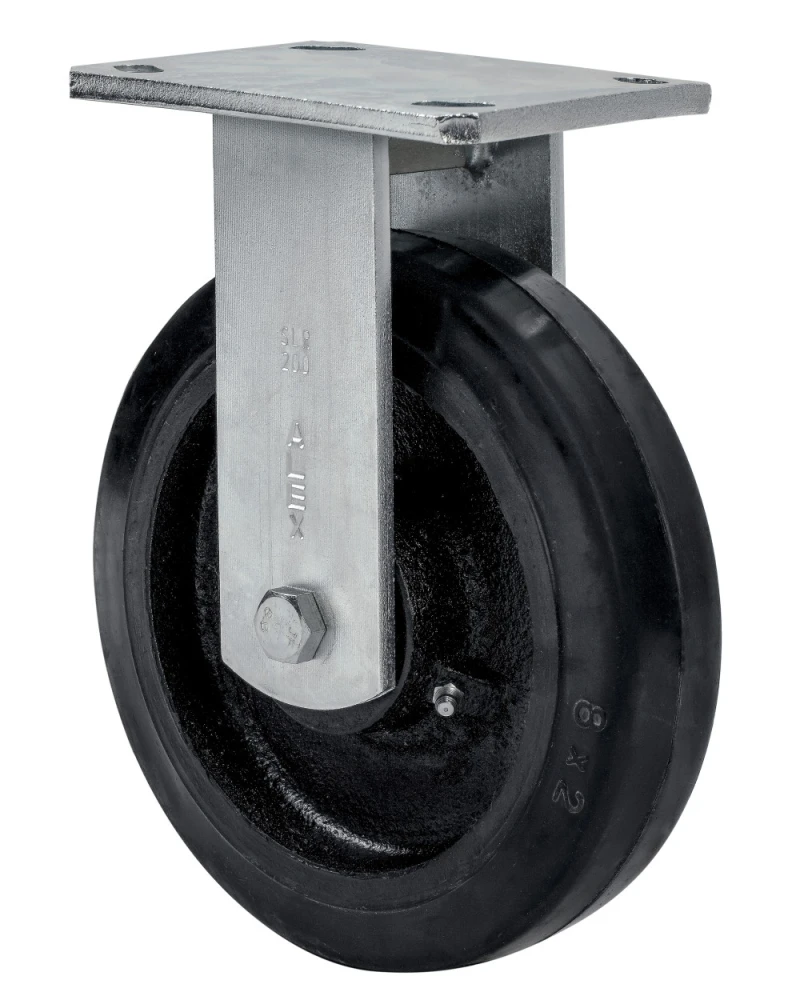

Castors with steel centre and black rubber tyre, especially indicated to support high-loads uo to 600 Kg.
It is used in: logistics transport tools, repair shops, outdoor areas, carbody factories, mobile platfors, internal logistics, elevating platforms, transport carts, logistics for military missions material, heavy machinery for the construction sector, mobile cranes and boilers.
Mainly used in the industrial sector, aeronautic sector, railway and automobile factories.
Applied in mechanical engineering projects by draughtsmen and designers. Suitable for mechanical engineering projects by draftsmen and project executors.
HG: castor suitable for mechanical traction (elevating driven carts, trailers...) as well as manual. Industry in general. High floor. protection.

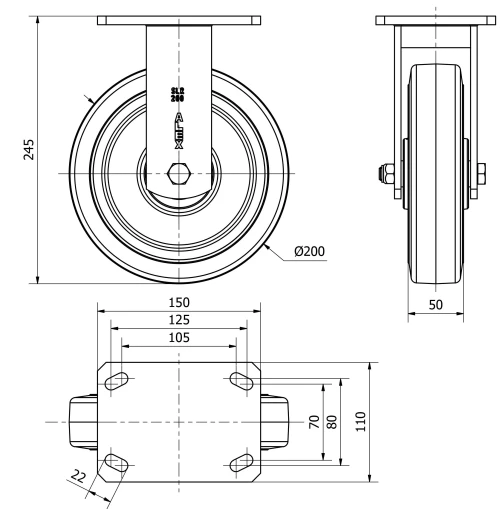

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 200 |
Width of tyre (mm) | 50 |
Plate dimensions (mm) | 150x110 |
Distance between holes (mm) | 125x70/105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 245 |
Load | 600 |
Unit Weight of the wheel (kg) | 6.015 |
Volume (cm3) | 5390 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of forged steel up to 8 mm. Double swivel head. The upper one with large ball bearings and the lower one with precision bearings to facilitate rotation, radial and axial efforts. Model especially manufactured for use in large carts with mechanical drive, factory maintenance, metallurgical industries. White zinc finish Manufactured to European Standards EN 12532
-
Rolling Resistence Reasonable
-
Noise during the march Excelent
-
Floor Protection Excelent
