Which castors do you need?
TVC SERIES-PO 2-3713
EAN 8422202237138

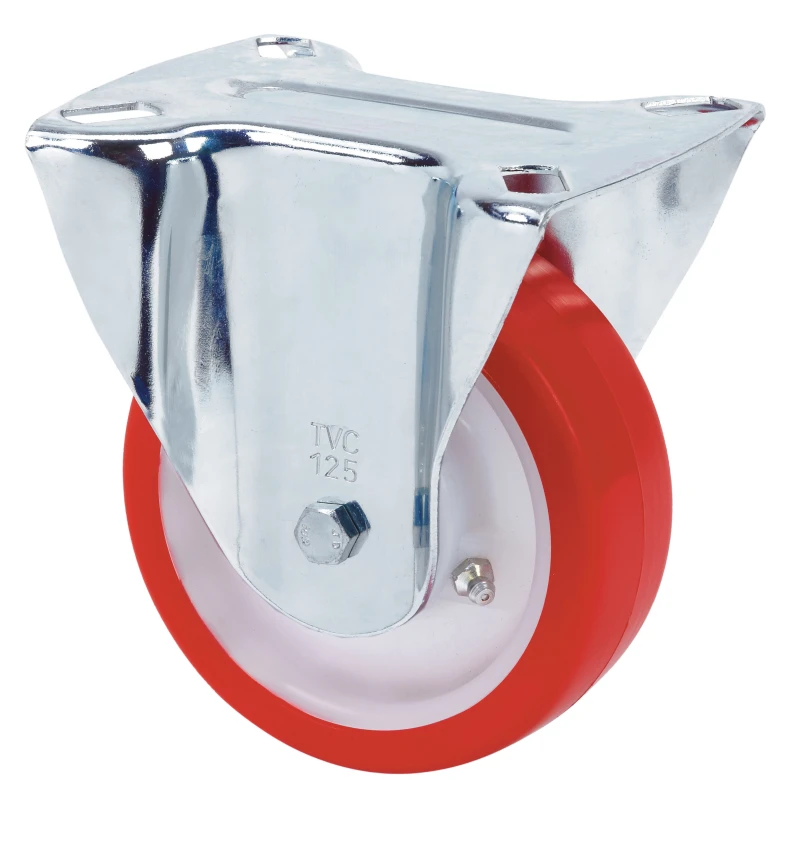

Castors with white nylon centre and red polyurethane tyre with a hardness of 90-95º.Especially indicated to support high-loads up to 280 Kg.
It is used in: logistics transport tools, outdoor areas, tool trolleys, internal logistics, tubular carts, pneumatic factories, mobile platforms, transport tools, elevating platforms, food industry, transport carts, repair shops, tool transport, packaging machines and conveyor belts.
Mainly used in the aeronautic sector, railway, automobile factories and food industry.
Suitable for mechanical engineering projects by draftsmen and project executors.
PO: noiseless. High floor protection. Long useful life. Resistant to oils, grease and shavings.

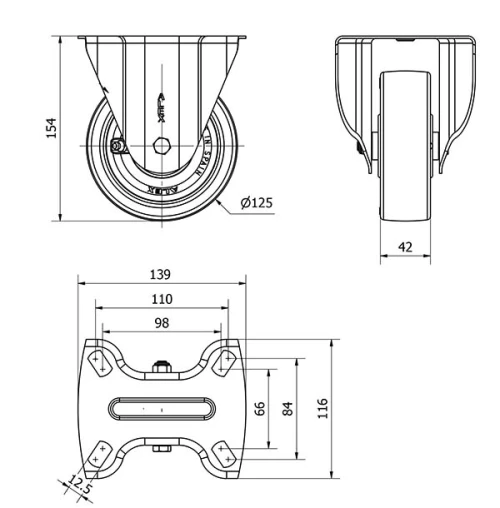

Technical Data
Housing Type | Fixed |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Material | Polyurethane |
Hardness of tread | 90-95º SHORE A |
Bearing | Ball |
Diameter (mm) | 125 |
Width of tyre (mm) | 42 |
Plate dimensions (mm) | 136x116 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Overall height (mm) | 154 |
Load | 280 |
Unit Weight of the wheel (kg) | 1.02 |
Volume (cm3) | 2483 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of highly resistant pressed steel. Finish: zinc-plated. Double ball bearing in the swivel head. Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
