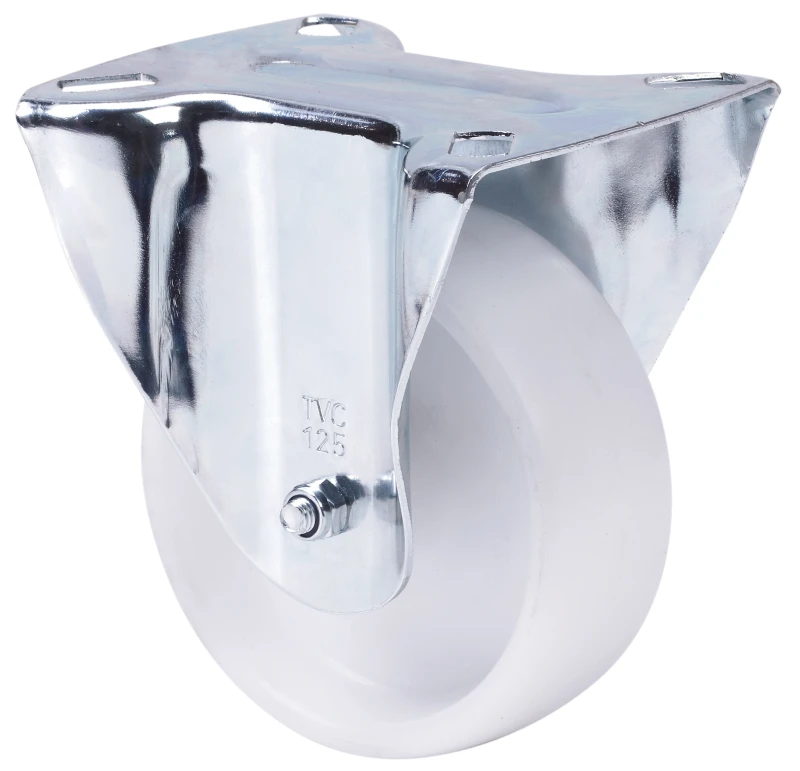

TVC SERIES-TP 2-2451

Code: 2-2451

White polypropylene castors, especially indicated to support high-loads up to 280 Kg.

It is used in: logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms and transport carts.

Mainly used in the industrial sector and roll containers.

TP: undeformable, light, resistance to impacts and clean.

Components

Brackets

Made of highly resistant pressed steel.Finish: zinc-plated.Double ball bearing in the swivel head.Manufactured to European standard EN 12532.

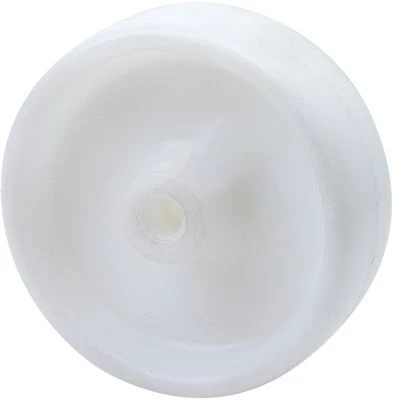

Wheel

White Polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

Technical Data 2-2451

EAN:

8422202224510

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Polypropylene

Bearing:

Ball

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

136x116

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

154

Load:

300

Unit Weight of the wheel (kg):

0,86

Volume (cm³):

2483

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price
