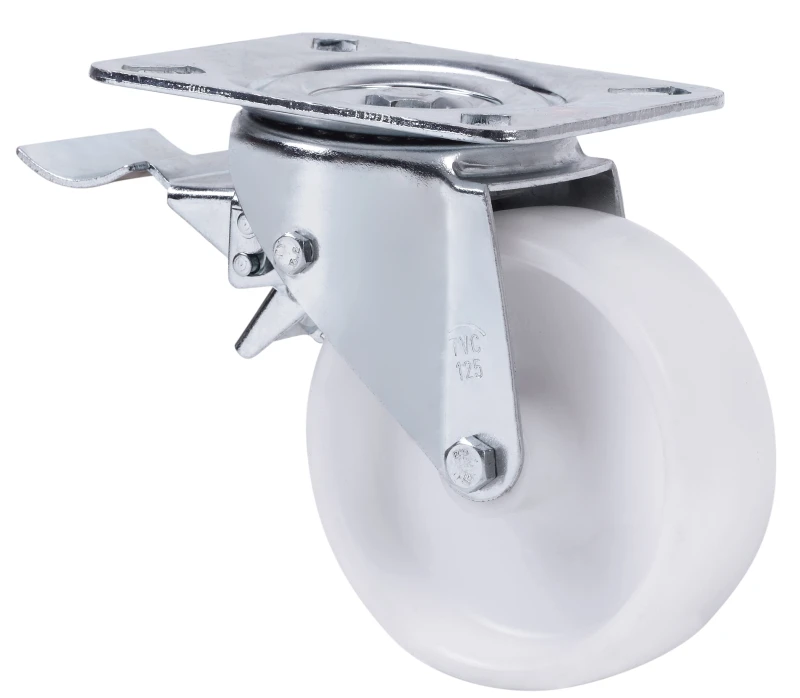

TVC SERIES-TP 2-2674
EAN 8422202226743
White polypropylene castors, especially indicated to support high-loads up to 280 Kg.
It is used in: logistics transport tools, outdoor areas, clean rooms, internal logistics, mobile platforms, elevating platforms and transport carts.
Mainly used in the industrial sector and roll containers.
TP: undeformable, light, resistance to impacts and clean.
Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Polypropylene |
Bearing | Plain |
Diameter (mm) | 125 |
Width of tyre (mm) | 45 |
Plate dimensions (mm) | 139x110 |
Distance between holes (mm) | 105x80 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 110 |
Overall height (mm) | 154 |
Load | 280 |
Unit Weight of the wheel (kg) | 1.6 |
Volume (cm3) | 3761 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of highly resistant pressed steel.Finish: zinc-plated.Double ball bearing in the swivel head.Manufactured to European standard EN 12532.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
