TVC SERIES-TPG 2-1014

Code: 2-1014

Castors with black nylon centre and rubber tyre. Especially indicated to support high-loads up to 200 Kg.

It is used in: food industry, conveyor belts, packaging machines and transport cages.

Suitable for mechanical engineering projects by draftsmen and project executors.

TPG: ideal in the manual and noiseless displacement of medium-loads. Absorption to impacts and vibrations. High protection of floors and equipment. Ideal in uneven surfaces.

Components

Brackets

Made of highly resistant pressed steel. Finish: zinc-plated. Double ball bearing in the swivel head. Manufactured to European standard EN 12532.

Wheel

Rubber tyre on black polyamide centre

Temperature range: -20º ÷ +60º

Rolling Resistence Reasonable

Noise during the march Excelent

Floor Protection Excelent

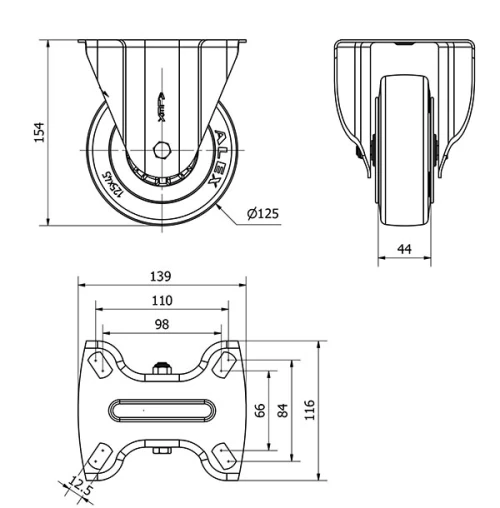

Technical Data 2-1014

EAN:

8422202210148

Housing Type:

Fixed

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

125

Width of tyre (mm):

Plate dimensions (mm):

139x110

Distance between holes (mm):

105x80

Plate hole diameter (mm):

Overall height (mm):

154

Load:

200

Unit Weight of the wheel (kg):

1,12

Volume (cm³):

2483
