LP SERIES-KN 2-4544
EAN 8422202245447
Reinforced nylon castors, especially designed to support loads up to 600 Kg with minimal height.
Used for medium-heavy duty loads in industrial environments, transport equipment, workshops, outdoor areas, tool trolleys, internal logistics, light machinery, forklifts, lifting tables.
KN: Smooth rolling performance and esay positioning. Noiseless.

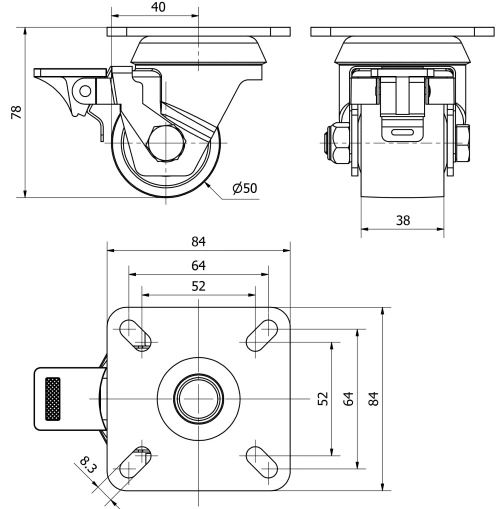

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake |
Material | Nylon(Polyamide 6) |
Low Temperature (ºC) | -30 |
Maximum Temperature (ºC) | 80 |
Hardness of tread | 95º SHORE A |
Bearing | Ball |
Diameter (mm) | 50 |
Width of tyre (mm) | 38 |
Plate dimensions (mm) | 84x84 |
Distance between holes (mm) | 64x64 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 40 |
Overall height (mm) | 78 |
Load | 300 |
Unit Weight of the wheel (kg) | 0.75 |
Volume (cm3) | 767 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel up to 4mm thickness. Black paint finish. Double ball bearing swivel head (wrapped-around chromium steel ball bearing lying in a hardened seat) Manufactured according to European Standards EN12528/12532.
