Which castors do you need?

SERIE B-PGI

Categories

Grey injected rubbert castors, especially indicated to support high-loads up to 25 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.

PGI: does not scratch or leave marks on floor. Noiseless.

See comparative

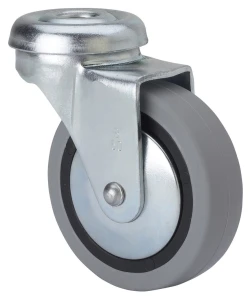

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0214 30 15 16 Bearing: Plain 46x36 34x24 5 51 32
1-0216 40 17 16 Bearing: Plain 46x36 34x24 5 58 45
1-0217 50 22 18 Bearing: Plain 70x55 54x38 6 72 46
1-0190 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0547 40 17 16 Bearing: Plain 46x36 34x24 5 58 45
1-0548 50 22 18 Bearing: Plain 70x55 54x38 6 72 46
1-0549 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0400 60 25 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0215 30 15 16 Bearing: Plain -- -- 8 48 32
1-0014 40 17 16 Bearing: Plain -- -- 8 57 45
1-0218 50 22 18 Bearing: Plain -- -- 10 67 46
1-0017 60 25 18 Bearing: Plain -- -- 10 78 53

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0550 40 17 16 Bearing: Plain -- -- 8 57 45
1-0551 50 22 18 Bearing: Plain -- -- 10 67 46
1-0552 60 25 18 Bearing: Plain -- -- 10 78 53

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0330 60 25 18 Bearing: Plain -- -- 10 78 53

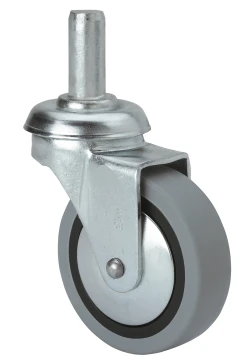

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
1-0298 50 22 18 Bearing: Plain -- -- 12x29 96 46
1-0178 60 25 18 Bearing: Plain -- -- 12x29 107 53
1-0260 80 40 25 Bearing: Plain -- -- 12x28 133 75

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
1-0503 60 25 18 Bearing: Plain -- -- 12x29 107 53

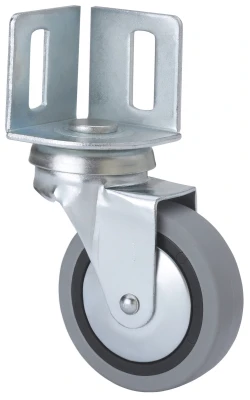

B SERIES-PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0223 40 17 16 Bearing: Plain 38x38 -- -- 57 45
1-0231 60 25 18 Bearing: Plain 38x38 -- -- 78 53

Other castors SERIE B

SERIE B-BP
SERIE B-BP
Diametro 30-60 mm
Carga 15-40 kg
SERIE B-PPI
SERIE B-PPI
Diametro 30-60 mm
Carga 15-40 kg
SERIE B-PUA
SERIE B-PUA
Novedad
Diametro 30-60 mm
Carga 15-40 kg
