Which castors do you need?

SERIE B-PPI

Categories

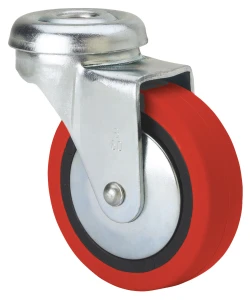

Red soft injected polyurethane castors, especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.

PPI: noiseless and undeformable. Easy to move.

See comparative

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-2563 30 15 16 Bearing: Plain 46x36 34x24 5 51 32
2-2564 40 22 16 Bearing: Plain 46x36 34x24 5 58 45
2-2565 50 35 18 Bearing: Plain 70x55 54x38 6 72 46
2-2566 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0553 40 22 16 Bearing: Plain 46x36 34x24 5 58 45
1-0554 50 35 18 Bearing: Plain 70x55 54x38 6 72 46
1-0555 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-2569 60 40 18 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-2570 30 15 16 Bearing: Plain -- -- 8 48 32
2-2571 40 22 16 Bearing: Plain -- -- 8 57 45
2-2572 50 35 18 Bearing: Plain -- -- 10 67 46
2-2573 60 40 18 Bearing: Plain -- -- 10 78 53

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0556 40 22 16 Bearing: Plain -- -- 8 57 45
1-0557 50 35 18 Bearing: Plain -- -- 10 67 46
1-0558 60 40 18 Bearing: Plain -- -- 10 78 53

B SERIES-PPI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-2576 60 40 18 Bearing: Plain -- -- 10 78 53

Other castors SERIE B

SERIE B-PGI
SERIE B-PGI
Diametro 30-80 mm
Carga 15-40 kg
SERIE B-BP
SERIE B-BP
Diametro 30-60 mm
Carga 15-40 kg
SERIE B-PUA
SERIE B-PUA
Novedad
Diametro 30-60 mm
Carga 15-40 kg
