Which castors do you need?
B SERIES-PPI 2-2572
EAN 8422202225722
Red soft injected polyurethane castors, especially indicated to support high-loads up to 40 Kg.
It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.
PPI: noiseless and undeformable. Easy to move.

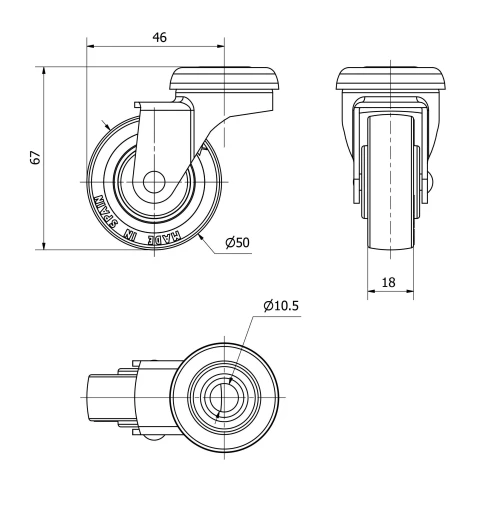

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 18 |
Plate hole diameter (mm) | 10 |
Offset (mm) | 46 |
Overall height (mm) | 67 |
Load | 35 |
Unit Weight of the wheel (kg) | 0.14 |
Volume (cm3) | 183 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Zinc-plated.Ball bearing swivel head. Rubber wheels Ø 50 and 60 mm with threadguards. Manufactured to European standards EN 12528.
Red polyurethane tyre on black polypropylene centre. 95º shore A
Temperature range: -25º ÷ +80º
-
Rolling Resistence Very Good
-
Noise during the march Very Good
-
Floor Protection Very Good
