Which castors do you need?

SERIE B-BP

Categories

Grey polypropylene castors, especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.

BP: undeformable. Easy to move.

See comparative

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0171 30 15 16 Bearing: Plain 46x36 34x24 5 51 32
3-0001 40 22 17 Bearing: Plain 46x36 34x24 5 58 45
1-0173 50 35 17 Bearing: Plain 70x55 54x38 6 72 46
3-0003 60 40 17 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
1-0541 40 22 17 Bearing: Plain 46x36 34x24 5 58 45
1-0542 50 35 17 Bearing: Plain 70x55 54x38 6 72 46
1-0543 60 40 17 Bearing: Plain 70x55 54x38 6 81 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-1494 60 40 17 Bearing: Plain 70x55 54x38 6 81 53

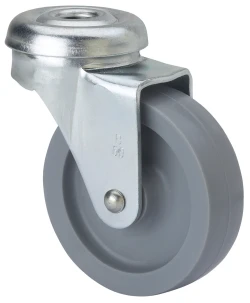

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
3-0005 30 15 16 Bearing: Plain -- -- 8 48 32
3-0006 40 22 17 Bearing: Plain -- -- 8 57 45
1-0172 50 35 17 Bearing: Plain -- -- 10 67 46
3-0007 60 40 17 Bearing: Plain -- -- 10 78 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
1-0544 40 22 16 Bearing: Plain -- -- 8 57 45
1-0545 50 35 17 Bearing: Plain -- -- 10 67 46
1-0546 60 40 17 Bearing: Plain -- -- 10 78 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Through hole diameter Overall height Offset
2-1495 60 40 17 Bearing: Plain -- -- 10 78 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
1-0225 50 35 17 Bearing: Plain -- -- 12x29 96 46
1-0228 60 40 17 Bearing: Plain -- -- 12x29 107 53

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
1-0504 60 40 17 Bearing: Plain -- -- 12x29 107 53

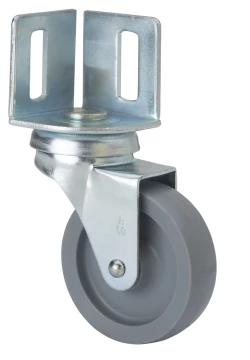

B SERIES-BP

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
3-0009 40 22 17 Bearing: Plain 38x38 -- -- 57 45
3-0010 60 40 17 Bearing: Plain 38x38 -- -- 78 53

Other castors SERIE B

SERIE B-PGI
SERIE B-PGI
Diametro 30-80 mm
Carga 15-40 kg
SERIE B-PPI
SERIE B-PPI
Diametro 30-60 mm
Carga 15-40 kg
SERIE B-PUA
SERIE B-PUA
Novedad
Diametro 30-60 mm
Carga 15-40 kg
