B SERIES-BP 3-0003
EAN 8422202300030
Grey polypropylene castors, especially indicated to support high-loads up to 40 Kg.
It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.
BP: undeformable. Easy to move.

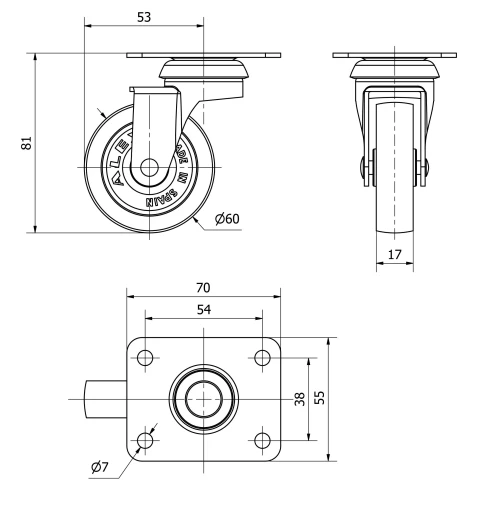

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 60 |
Width of tyre (mm) | 17 |
Plate dimensions (mm) | 70x55 |
Distance between holes (mm) | 54x38 |
Plate hole diameter (mm) | 6 |
Offset (mm) | 53 |
Overall height (mm) | 81 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.22 |
Volume (cm3) | 392 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Zinc-plated. Ball bearing swivel head. Rubber wheels Ø 50 and 60 mm with threadguards. Manufactured to European standards EN 12528.
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
