B SERIES-BP 1-0544

See comparative

Code: 1-0544

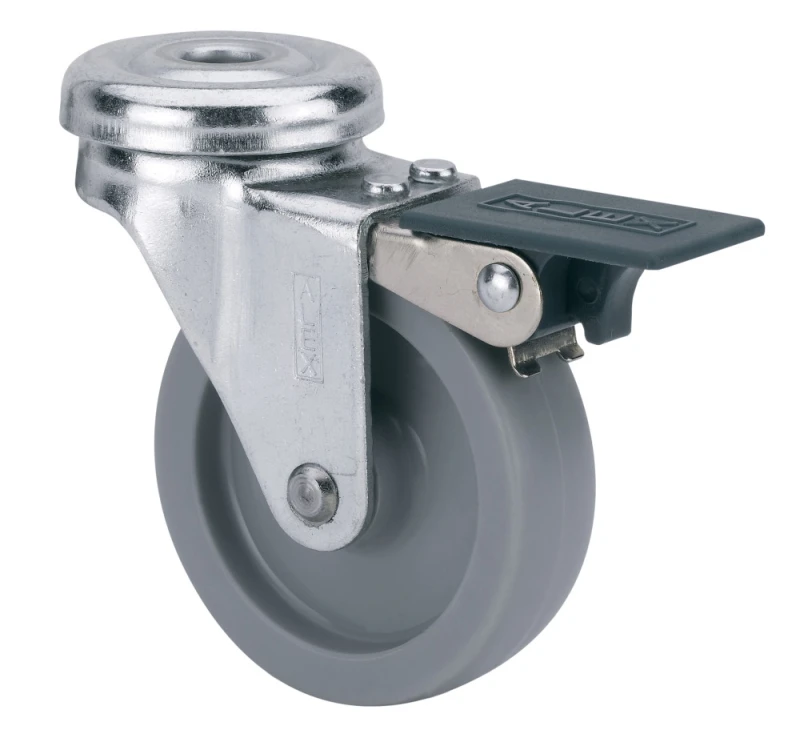

Grey polypropylene castors, especially indicated to support high-loads up to 40 Kg.

It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.

BP: undeformable. Easy to move.

Components

Brackets

Made of pressed steel castor up to 2 mm. Finish: Zinc-plated. Ball bearing swivel head. Rubber wheels Ø 50 and 60 mm with threadguards. Manufactured to European standards EN 12528.

Wheel

Grey polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

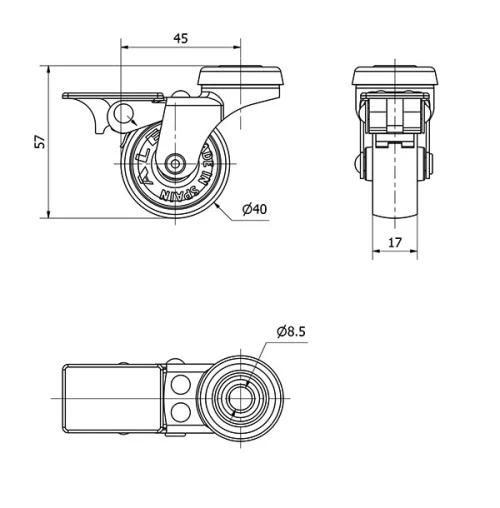

Technical Data 1-0544

EAN:

8422202105444

Housing Type:

Swivel

Fitting Type:

Bolt hole

Braking System:

Wheel Brake

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Hardness of tread:

65º SHORE D

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,077

Volume (cm³):

150

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products
