B SERIES-PGI 1-0223
EAN 8422202102238

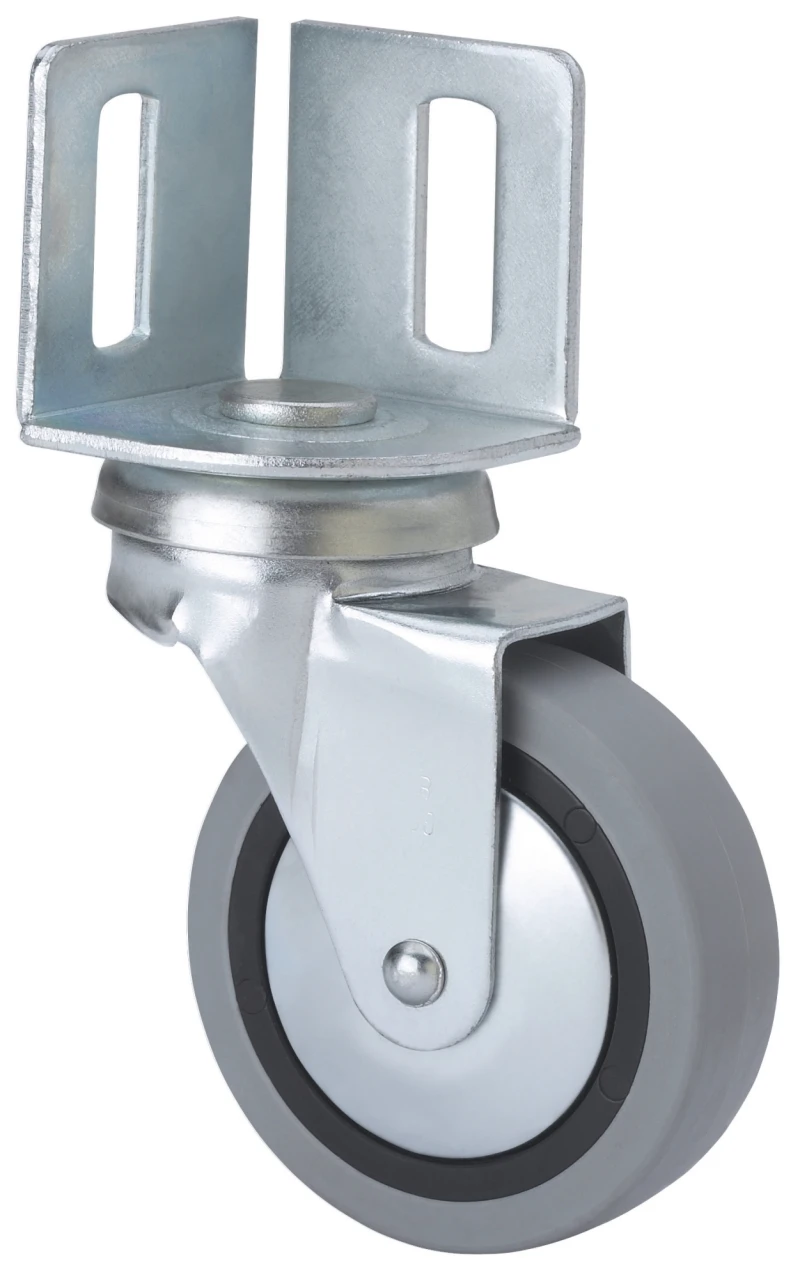

Grey injected rubbert castors, especially indicated to support high-loads up to 25 Kg.
It is used in: display stands, furniture, shelves, stools, clothes racks, catering carts, cabinetmaker's, stands, housekeeping carts, computer tables, small furniture and bedside tables.
PGI: does not scratch or leave marks on floor. Noiseless.

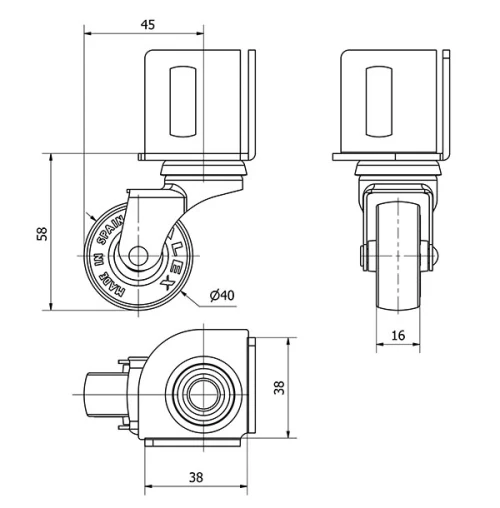

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | For corners |
Braking System | Without Brake |
Bearing | Plain |
Diameter (mm) | 40 |
Width of tyre (mm) | 16 |
Plate dimensions (mm) | 38x38 |
Plate hole diameter (mm) | 5 |
Offset (mm) | 45 |
Overall height (mm) | 57 |
Load | 17 |
Unit Weight of the wheel (kg) | 0.139 |
Volume (cm3) | 236 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of pressed steel castor up to 2 mm. Finish: Zinc-plated. Ball bearing swivel head. Rubber wheels Ø 50 and 60 mm with threadguards. Manufactured to European standards EN 12528.
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
