H SERIES-BP 3-0020
EAN 8422202300207
Grey polypropylene castors, especially indicated to support high-loads up to 22 Kg.
It is used in: display stands, furniture, shelves, do-it-yourself shops, clothes racks and small furniture.
BP: undeformable. Easy to move.

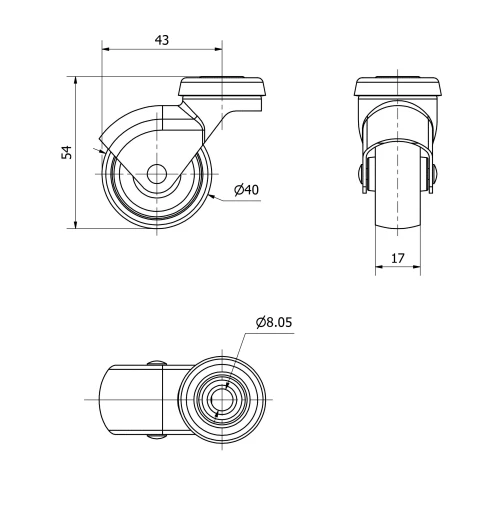

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Bolt hole |
Braking System | Without Brake |
Material | Plastic Polypropylene |
Bearing | Plain |
Diameter (mm) | 40 |
Width of tyre (mm) | 17 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 43 |
Overall height (mm) | 54 |
Load | 22 |
Unit Weight of the wheel (kg) | 0.07 |
Volume (cm3) | 102 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of pressed steel castor up to 2 mm.Finish: glossy zinc plating.Fittings: Swivel Plate, stem with U-shaped plate, bolt hole.Wheel Bearings: Plain bearing.
Wheel
Grey polypropylene wheel
Temperature range: -20º ÷ +60º
-
Rolling Resistence Very Good
-
Noise during the march Reasonable
-
Floor Protection Reasonable
