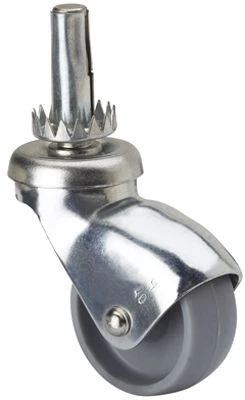

H SERIES-BP 3-0021

Code: 3-0021

Grey polypropylene castors, especially indicated to support high-loads up to 22 Kg.

It is used in: display stands, furniture, shelves, do-it-yourself shops, clothes racks and small furniture.

BP: undeformable. Easy to move.

Components

Brackets

Made of pressed steel castor up to 2 mm.Finish: glossy zinc plating.Fittings: Swivel Plate, stem with U-shaped plate, bolt hole.Wheel Bearings: Plain bearing.

Wheel

Grey polypropylene wheel

Temperature range: -20º ÷ +60º

Rolling Resistence Very Good

Noise during the march Reasonable

Floor Protection Reasonable

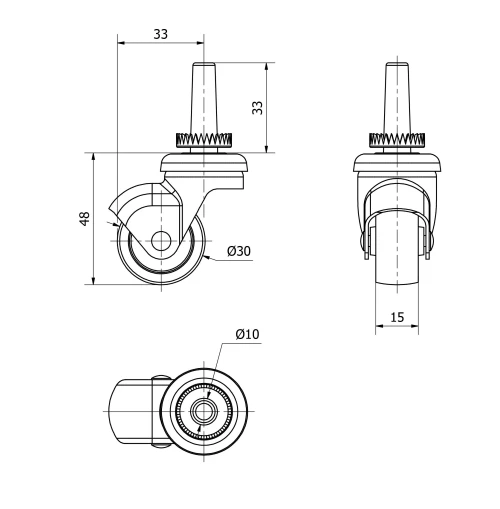

Technical Data 3-0021

EAN:

8422202300214

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Without Brake

Material:

Plastic Polypropylene

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Width x height of stem:

10x33

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,067

Volume (cm³):
