HP SERIES-PGI 1-0785

Code: 1-0785

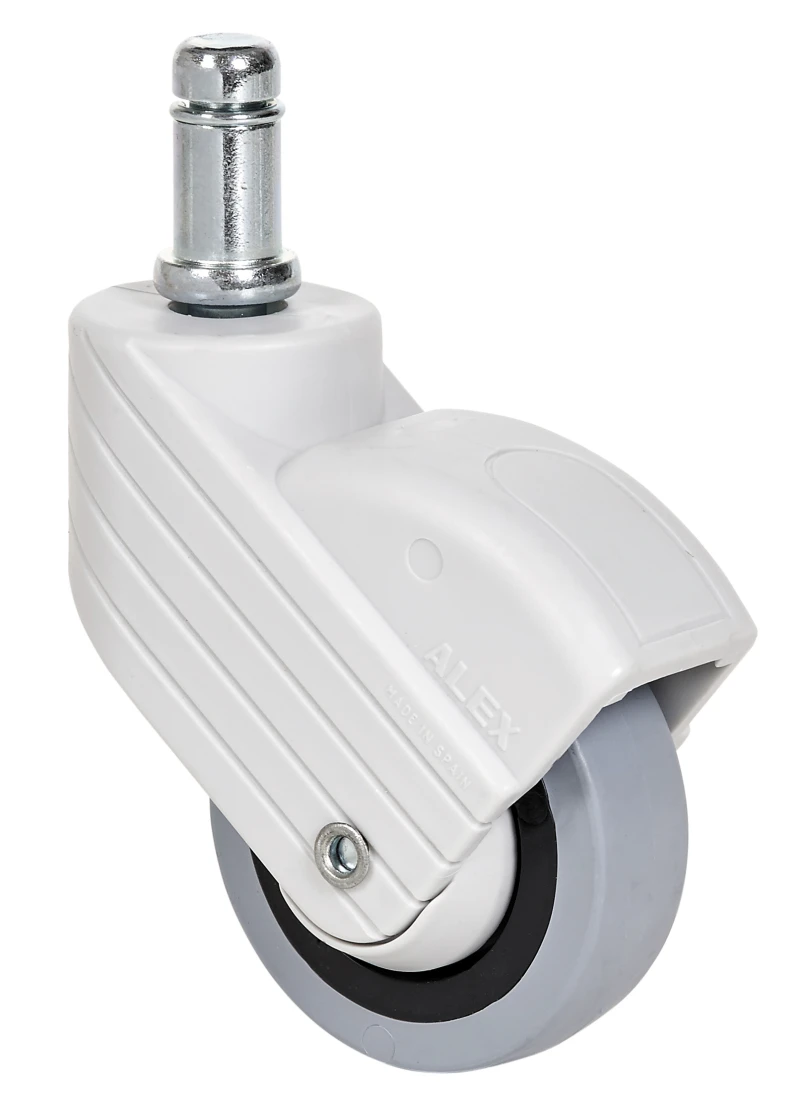

Grey rubber castors, especially indicated to support loads up to 22 Kg.

It is used in: display stands, commercial furniture, stools, furniture, catering, labor rooms, hospital equipment, clinical furniture, drips holders and housekeeping carts.

PGI GREY: does not scratch or leave marks on floor. Suitable for all kind of flooring surfaces.

Components

Brackets

Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528

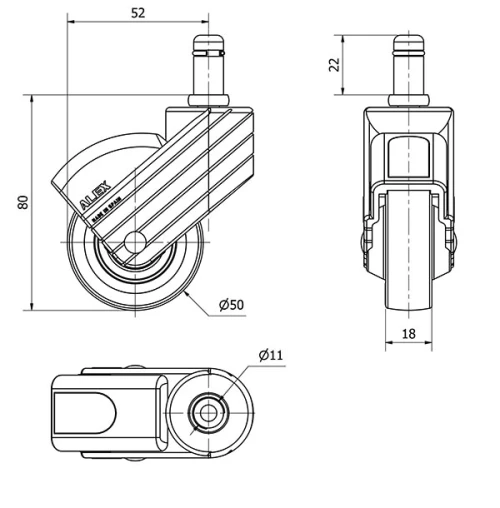

Technical Data 1-0785

EAN:

8422202107851

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Without Brake

Material:

Rubber

Low Temperature (ºC):

-20

Maximum Temperature (ºC):

Bearing:

Plain

Diameter (mm):

Width of tyre (mm):

Width x height of stem:

M8x15

Offset (mm):

Overall height (mm):

Load:

Unit Weight of the wheel (kg):

0,08

Volume (cm³):

206
