Which castors do you need?
HP SERIES-PGI 1-0786
EAN 8422202107868

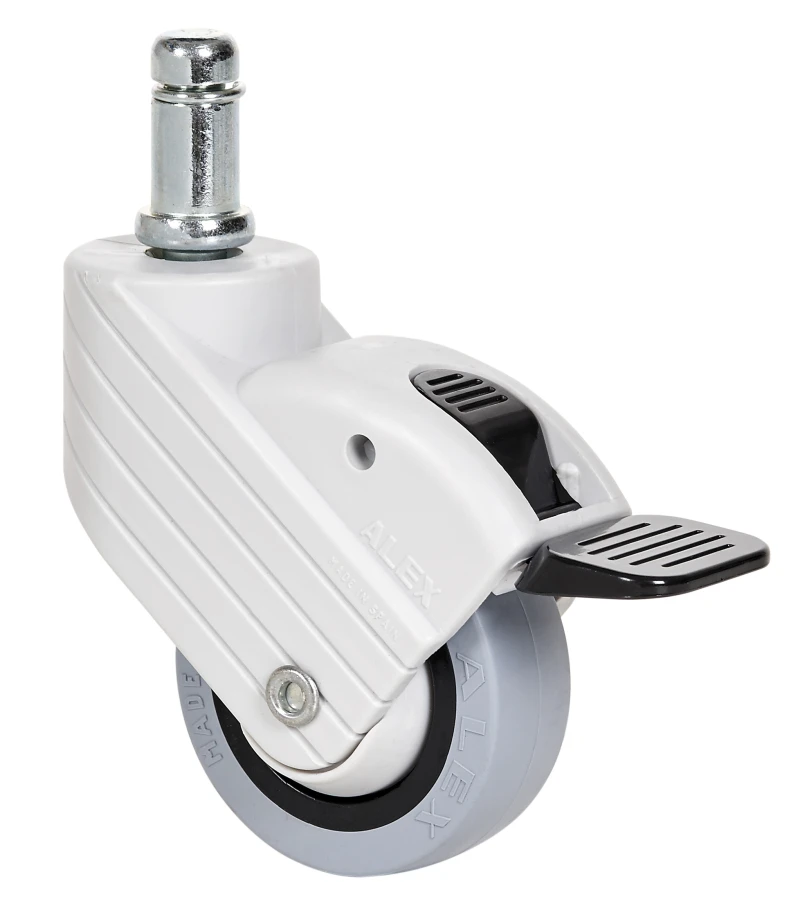

Grey rubber castors, especially indicated to support loads up to 22 Kg.
It is used in: display stands, commercial furniture, stools, furniture, catering, labor rooms, hospital equipment, clinical furniture, drips holders and housekeeping carts.
PGI GREY: does not scratch or leave marks on floor. Suitable for all kind of flooring surfaces.

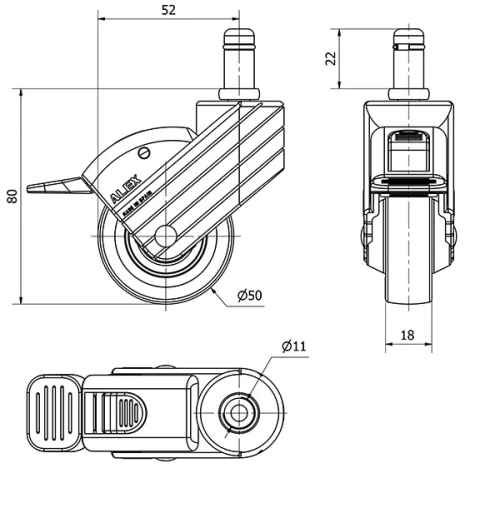

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Wheel Brake |
Material | Rubber |
Low Temperature (ºC) | -20 |
Maximum Temperature (ºC) | 60 |
Bearing | Plain |
Diameter (mm) | 50 |
Width of tyre (mm) | 18 |
Width x height of stem | M8x15 |
Offset (mm) | 52 |
Overall height (mm) | 80 |
Load | 22 |
Unit Weight of the wheel (kg) | 0.08 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528
