AN SERIES-AN 4-1554

Code: 4-1554

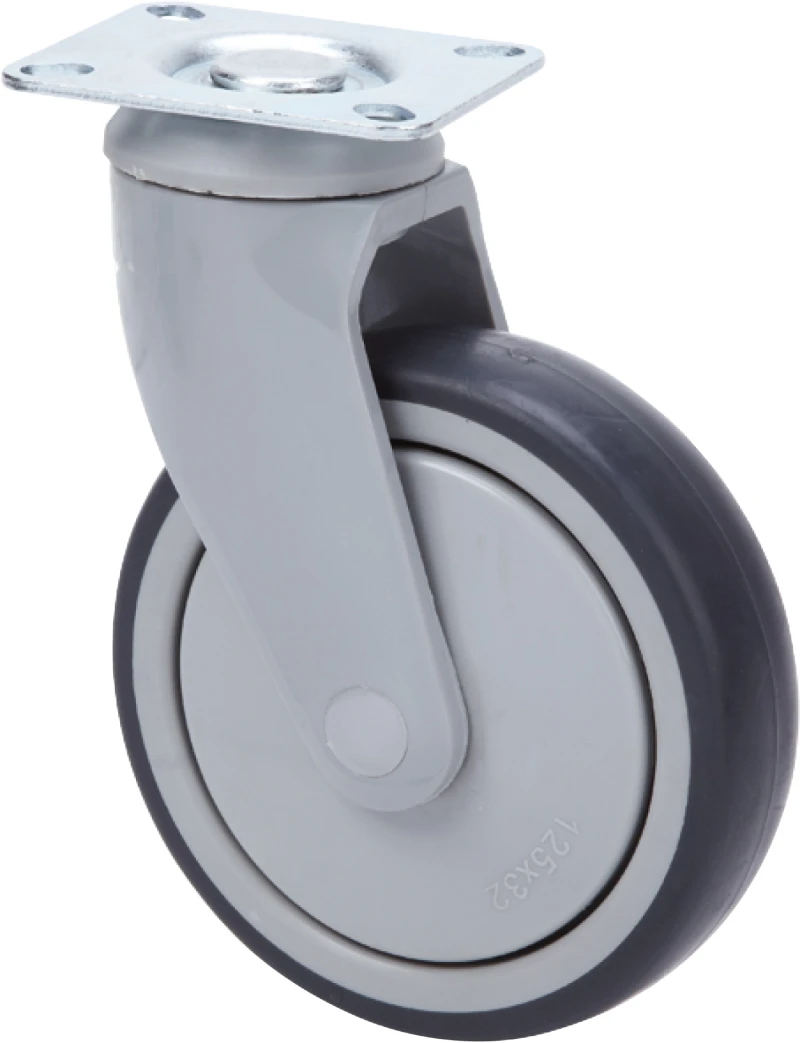

Injected grey polyurethane castors. Especially indicated to support high-loads up to 100 Kg. With nylon fibre reinforced bracket.

Our range of AN SERIE castors is recommended for the medium-load sectors. It is used in: labor rooms, hospitals, radiology, wheelchairs, operation beds, first aid rooms and intensive care beds.

Noiseless castors, floor protection, resistant to oils and grease.

Components

Brackets

Nylon glass fibre-reinforced synthetic bracket.Hardened double ball raceways.Double brake: wheel and bracket.Manufactured to European standards EN 12530.

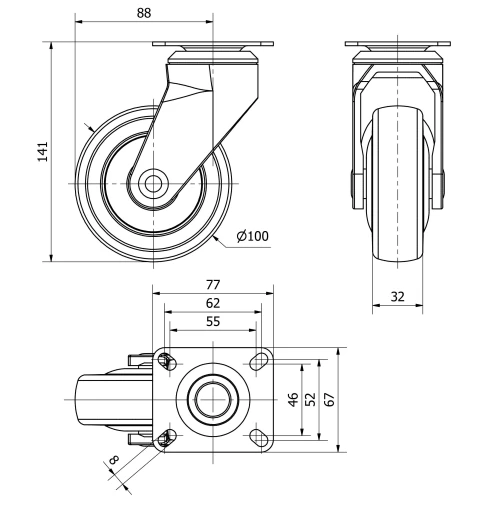

Technical Data 4-1554

EAN:

8422202415543

Housing Type:

Swivel

Fitting Type:

Plate

Braking System:

Without Brake

Material:

Rubber

Bearing:

Ball

Diameter (mm):

100

Width of tyre (mm):

Plate dimensions (mm):

67x77

Distance between holes (mm):

62x52/55x46

Plate hole diameter (mm):

Offset (mm):

Overall height (mm):

141

Load:

Unit Weight of the wheel (kg):

0,66

Volume (cm³):

1144

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

4-1556
