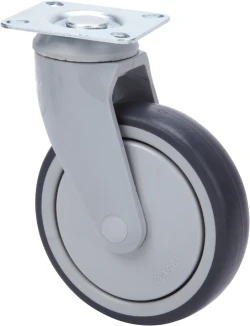

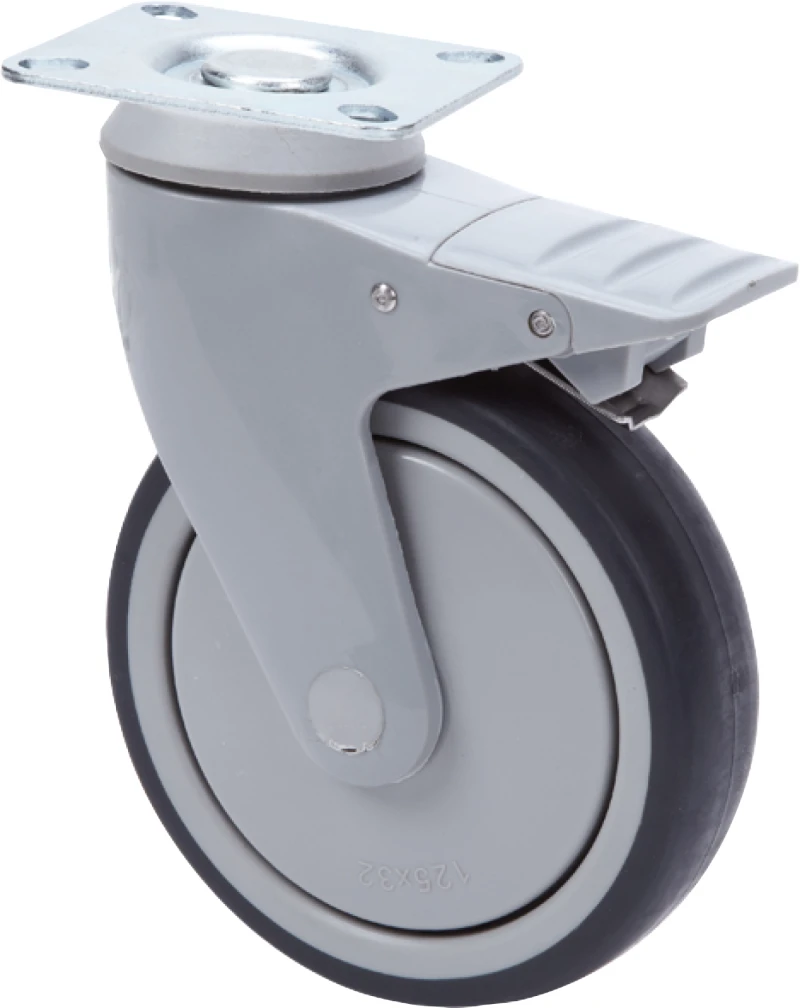

AN SERIES-AN 4-1556
EAN 8422202415567
Injected grey polyurethane castors. Especially indicated to support high-loads up to 100 Kg. With nylon fibre reinforced bracket.
Our range of AN SERIE castors is recommended for the medium-load sectors. It is used in: labor rooms, hospitals, radiology, wheelchairs, operation beds, first aid rooms and intensive care beds.
Noiseless castors, floor protection, resistant to oils and grease.

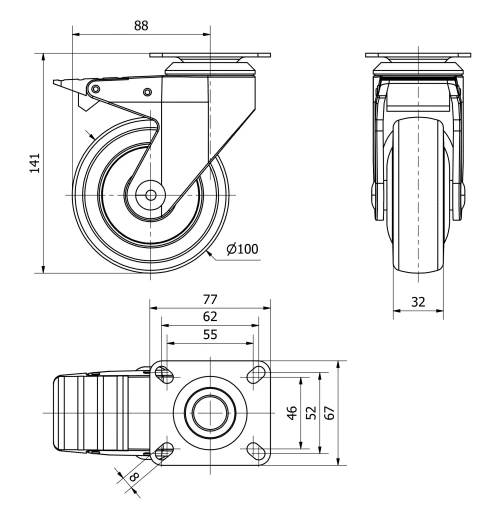

Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Plate |
Braking System | Wheel Brake And Fork |
Material | Rubber |
Bearing | Ball |
Diameter (mm) | 100 |
Width of tyre (mm) | 32 |
Plate dimensions (mm) | 67x77 |
Distance between holes (mm) | 62x52/55x46 |
Plate hole diameter (mm) | 8 |
Offset (mm) | 88 |
Overall height (mm) | 141 |
Load | 80 |
Unit Weight of the wheel (kg) | 0.8 |
Volume (cm3) | 1144 |
Private area
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Nylon glass fibre-reinforced synthetic bracket.Hardened double ball raceways.Double brake: wheel and bracket.Manufactured to European standards EN 12530.
