Code: 2-3317

Components

Brackets

Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528

Wheel

Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
Rolling Resistence Good
Noise during the march Very Good
Floor Protection Very Good

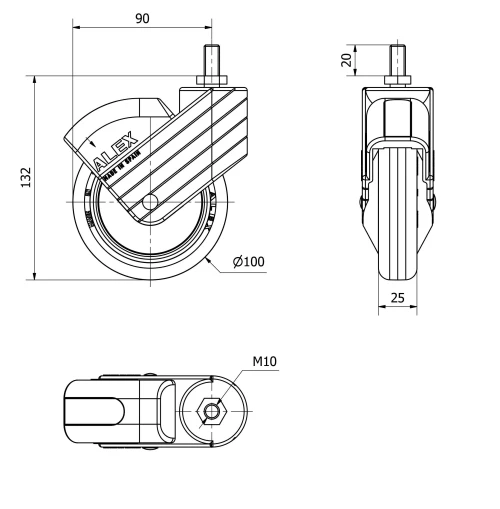

Technical Data 2-3317

EAN:
8422202233178
Housing Type:
Swivel
Fitting Type:
Threaded Stem
Braking System:
Without Brake
Material:
Rubber
Bearing:
Plain
Diameter (mm):
100
Width of tyre (mm):
25
Width x height of stem:
10x20
Offset (mm):
90
Overall height (mm):
132
Load:
40
Unit Weight of the wheel (kg):
0,295
Volume (cm3):
790
Technical Data 2-3317
