Which castors do you need?

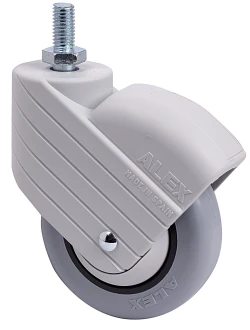

SERIE HP-PGI Grey

Categories

Polyamix and grey rubber wheels. Especially suitable for supporting loads of up to 40 kg. Our range of HP-PGI series wheels is recommended for medium load capacity sectors. Suitable for use in: displays, furniture, stools, catering, hospitals, utility carts, clinical and sanitary furniture, IV stands, cleaning trolleys, and IV pole holders.

PGI GREY: Does not scratch or stain the floor. Suitable for all types of surfaces.

See comparative

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5209 80 40 24 Bearing: Plain 65x65 50x50 6 118 72
New
2-5211 100 40 25 Bearing: Plain 65x65 50x50 6 135 90
New

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Hole diameter Overall height Offset
2-5210 80 40 24 Bearing: Plain 65x65 50x50 6 118 72
New
2-5212 100 40 25 Bearing: Plain 65x65 50x50 6 135 90
New

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-3319 80 40 24 Bearing: Plain -- -- 11x30 114 72
2-3323 100 40 25 Bearing: Plain -- -- 11x30 132 90

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-3320 80 40 24 Bearing: Plain -- -- 11x30 114 72
2-3324 100 40 25 Bearing: Plain -- -- 11x30 132 90

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-3321 80 40 24 Bearing: Plain -- -- 10x20 114 72
2-3325 100 40 25 Bearing: Plain -- -- 10x20 132 90

HP SERIES-Grey PGI

Code Diameter Load Width of tyre Bearing Plate dimensions Distance between holes Stem dimensions Overall height Offset
2-3322 80 40 24 Bearing: Plain -- -- 10x20 114 72
2-3326 100 40 25 Bearing: Plain -- -- 10x20 132 90

Other castors SERIE HP

SERIE HP-PGI
SERIE HP-PGI
Novedad
Diametro 80-100 mm
Carga 40-40 kg
SERIE HP-PGC
SERIE HP-PGC
Diametro 80-100 mm
Carga 40-40 kg
