HP SERIES-Grey PGI 2-3323

Code: 2-3323

Polyamix and grey rubber wheels. Especially suitable for supporting loads of up to 40 kg. Our range of HP-PGI series wheels is recommended for medium load capacity sectors. Suitable for use in: displays, furniture, stools, catering, hospitals, utility carts, clinical and sanitary furniture, IV stands, cleaning trolleys, and IV pole holders.

PGI GREY: Does not scratch or stain the floor. Suitable for all types of surfaces.

Components

Brackets

Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528

Wheel

Grey rubber tyre on polypropylene centre

Temperature range: -20º ÷ +60º

Rolling Resistence Good

Noise during the march Very Good

Floor Protection Very Good

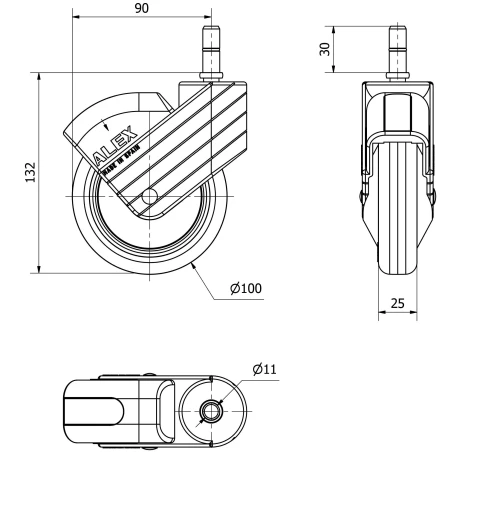

Technical Data 2-3323

EAN:

8422202233239

Housing Type:

Swivel

Fitting Type:

Stem

Braking System:

Without Brake

Material:

Rubber

Bearing:

Plain

Diameter (mm):

100

Width of tyre (mm):

Width x height of stem:

11x30

Offset (mm):

Overall height (mm):

132

Load:

Unit Weight of the wheel (kg):

0,3

Volume (cm³):

842

Private area

Regístrate

Download in 3D formats

Catia

Iges

Inventor

Parasolid

Proengineer

Step AP203

Download in 2D formats

DWG

Download PDF

PDF

Price

Similar products

2-3324
