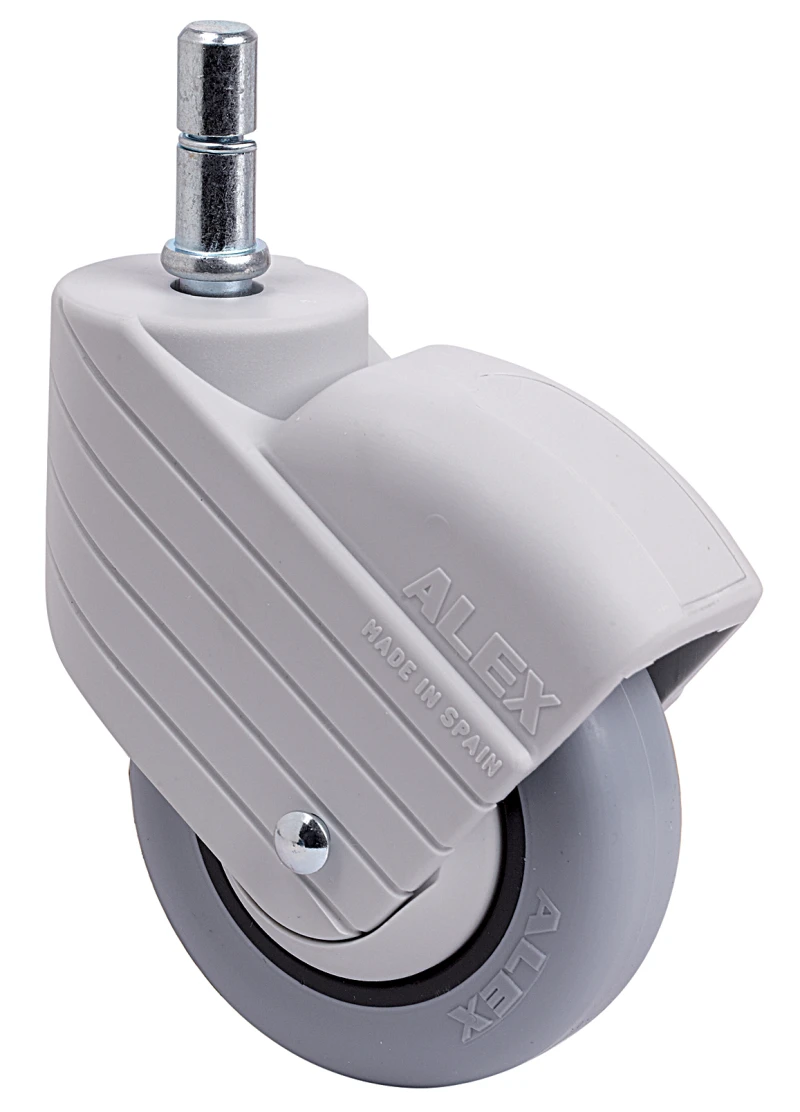

HP SERIES-Grey PGI 2-3319
EAN 8422202233192
Technical Data
Housing Type | Swivel |
---|---|
Fitting Type | Stem |
Braking System | Without Brake |
Material | Rubber |
Bearing | Plain |
Diameter (mm) | 80 |
Width of tyre (mm) | 24 |
Width x height of stem | 11x30 |
Offset (mm) | 72 |
Overall height (mm) | 114 |
Load | 40 |
Unit Weight of the wheel (kg) | 0.215 |
Volume (cm3) | 629 |
Private area
Price --€
Downloads
- Download in 3D formats
- Catia
- Iges
- Inventor
- Parasolid
- Proengineer
- Step AP203
- Download in 2D formats
- DWG
- Download PDF
Components
Brackets
Made of reinforced polyamide Casing with flushed recess for the rounded ergonomic brake Manufactured to European Standard EN 12528
Wheel
Grey rubber tyre on polypropylene centre
Temperature range: -20º ÷ +60º
-
Rolling Resistence Good
-
Noise during the march Very Good
-
Floor Protection Very Good
